4BARFLEXQILS | 4BAR FLEX Q ILS
4BARFLEXQILS
4BAR FLEX Q ILS
4BARFLEXQILS
4BAR FLEX Q ILS
- UM : EA
- Estimated Weight: 23.0

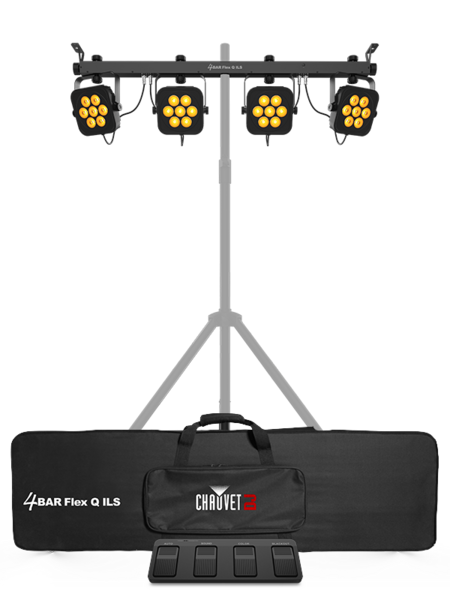

Complete wash lighting convenience reaches new heights with 4BAR Flex Q ILS. This all-in-one system is fitted with four par fixtures on one bar. Because 4BAR Flex Q ILS is compatbile with ILS which makes creating coordinated light shows across different fixture types easy as 1, 2, 3. No DMX required. High-intensity, quad-color (RGBA) LEDs generate a broad spectrum of colors and achieve natural-looking color temperatures with its punchy amber LEDs. 4BAR Flex Q ILS easily sets up and tears down in minutes and includes a handy carry bag. Adding to the unit’s versatility are two L-brackets that let you maximize setup possibilities and configurations. Easily mount up to 4 additional fixtures to the top of the 4BAR Flex Q ILS and provide power to additional lights using the built-in Edison plugs. 4BAR Flex Q ILS mounts to most tripods or speaker stands, without the need for additional clamps, using the pass-through hole. D-Fi™ USB compatibility for wireless master/slave or DMX control is on-board and multiple control options include standalone, DMX mode, wireless footswitch or the IRC-6.
Features:
- Complete wash lighting solution fitted with high-intensity, quad-color (RGBA) LEDs
- ILS compatibility for use in the ILS ecosystem
- Mounts to most tripods or speaker stands, without the need for additional clamps, using the pass-through hole
- Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
- D-Fi USB compatibility for wireless master/slave or DMX control (D-Fi USB sold separately)
- Create the ultimate light show by mounting up to 4 additional fixtures to the top of the 4BAR Flex Q
- Provide electricity to the additional lights by using the built-in Edison plugs
- Maximize setup possibilities and configurations with 2 included L-brackets
- Easily set up and tear down in minutes with the included carrying bag
- Multiple control options include standalone, DMX mode, wireless footswitch or the IRC-6 remote
- Safely mounts to truss using built-in bolts
| Dmx channels: | 4, 6 or 19 |
|---|---|
| Dmx connectors: | 3-pin XLR |
| Max unobstructed distance: | 28 LEDs (quad-color RGBA) 3.5 W, (1.3 A), 50,000 hours life expectancy |
| Strobe rate: | 0 to 20 Hz |
| Beam angle: | 14° |
| Field angle: | 23° |
| Illuminance: | 2,353 lux @ 2 m (per pod) |
| Input voltage: | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power and current: | 80 W, 1.2 A @ 120 V, 60 Hz 78 W, 0.6 A @ 230 V, 50 Hz |
| Approvals: | CE, RoHS, UKCA |
| Operating frequency (d-fi): | 2.412 to 2.484 GHz |
| Operating frequency (foot switch): | 433 MHz |
| Max unobstructed distance (foot switch): | 100 ft (30.5 m) |
| Footswitch battery: | 9 V |
| Fits tripod sizes: | 1.5 in (36.80 mm) |
| Bracket mounting hole: | M10 (1.5 mm pitch) |
| Weight: | 12.2 lb (5.5 kg) |
| Weight (controller): | 1.2 lb (0.6 kg) |
| Size: | 45.7 x 2 x 12 in (1186 x 50.8 x 305 mm) |
| Size (controller): | 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm) |
| Included controller: | IRC-6 |
| Optional controller: | D-Fi USB |
