4BARHEXILS | COMPLETE WASH LIGHTING SOLUTION FITTED WITH HIGH-INTENSITY HEX-COLOR (RGBAW+UV) LEDS
4BARHEXILS
COMPLETE WASH LIGHTING SOLUTION FITTED WITH HIGH-INTENSITY HEX-COLOR (RGBAW+UV) LEDS
4BARHEXILS
COMPLETE WASH LIGHTING SOLUTION FITTED WITH HIGH-INTENSITY HEX-COLOR (RGBAW+UV) LEDS
- UM : EA
- Estimated Weight: 34.0

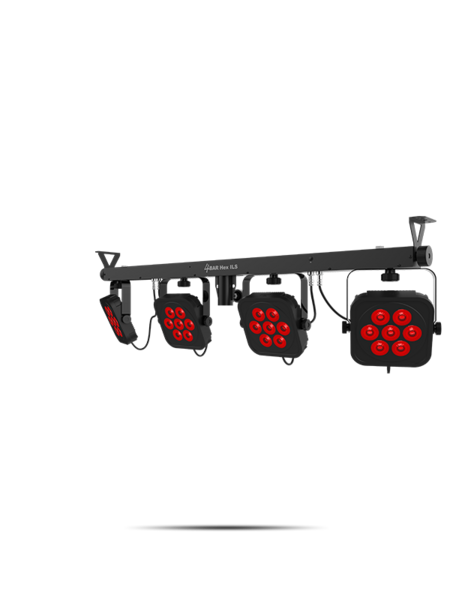

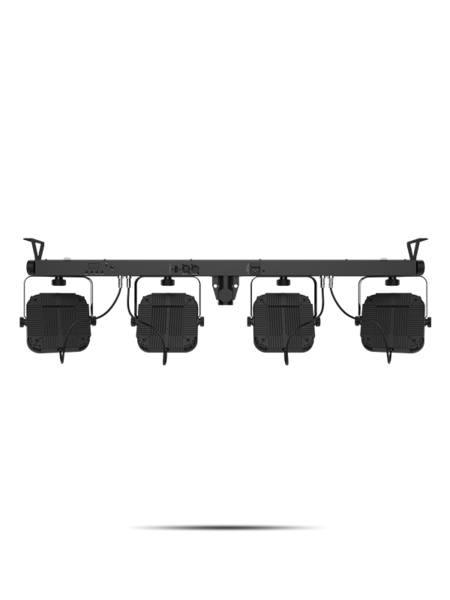

4BAR Hex ILS is a complete wash lighting solution fitted with high-intensity hex-color (RGBAW+UV) LEDs that can be controlled wirelessly right out of the box using the included footswitch or optional IRC-6 remote. ILS compatibility offers ultimate control flexibility and makes creating coordinated light shows with this unit and different fixture types as easy as 1, 2, 3. Generate a broad spectrum of colors and achieve natural-looking color temperatures with 6-in-1 LED technology. A tripod and carry bag are included for effortless setup and quick tear down.
Features:
- Complete wash lighting solution fitted with high-intensity, hex-color (RGBAW+UV) LEDs
- ILS compatibility for use in the ILS ecosystem
- D-Fi USB compatibility for wireless Master/Slave or DMX control (D-Fi USB sold separately)
- Generate a broad spectrum of colors and achieve natural-looking color temperatures with 6-in-1 LED technology
- Update the unit’s software from the built-in USB port
- Out of the box wireless control with included footswitch or optional IRC-6 controller
- Easily set up and tear down in minutes with the included tripod stand and carrying bags
- Achieve total room or stage coverage with 4 individually adjustable heads
- Increase mounting options by safely mounting to truss using built-in bolts
| Dmx channels: | 6, 8, or 27 |
|---|---|
| Dmx connectors: | 3-pin XLR |
| Max unobstructed distance: | (foot switch): 100 ft (30.5 m) |
| Light source: | 42 LEDs (hex color RGBAW+UV) 5.1 W, (2 A), 50,000 hours life expectancy |
| Strobe rate: | 0 to 20 Hz |
| Beam angle: | 16° |
| Field angle: | 25° |
| Illuminance: | 1570 lux @ 2 m (per pod) |
| Input voltage: | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power and current: | 97 W, 1.3 A @ 120 V, 60 Hz 94 W, 0.7 A @ 230 V, 50 Hz |
| Weight: | 12.2 lb (5.5 kg) |
| Size: | 45.7 x 2 x 12 in (1186 x 50.8 x 305 mm) |
| Approvals: | CE, RoHS, UKCA |
| Footswitch battery: | 9 V |
| Operating frequency (d-fi): | 2.412 to 2.484 GHz |
| Operating frequency (foot switch): | 433 MHz |
| Stand height: | 7 ft 4 in (2.2 m) |
| Fits tripod sizes: | 1.5 in (36.80 mm) |
| Bracket mounting hole: | M10 (1.5 mm pitch) |
| Weight (controller): | 1.2 lb (0.6 kg) |
| Size (controller): | 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm) |
| Optional controllers: | IRC-6, ILS Command |
