80-0189 | XIO BLUETOOTH RCA 3.5 WHITE:DANTE I/O ENDPOINT, BT MEDIA IN, BT PHONE I/O, STEREO RCA & 3.5 I/O
80-0189
XIO BLUETOOTH RCA 3.5 WHITE:DANTE I/O ENDPOINT, BT MEDIA IN, BT PHONE I/O, STEREO RCA & 3.5 I/O
80-0189
XIO BLUETOOTH RCA 3.5 WHITE:DANTE I/O ENDPOINT, BT MEDIA IN, BT PHONE I/O, STEREO RCA & 3.5 I/O
- UM : EA
- Estimated Weight: 1.0

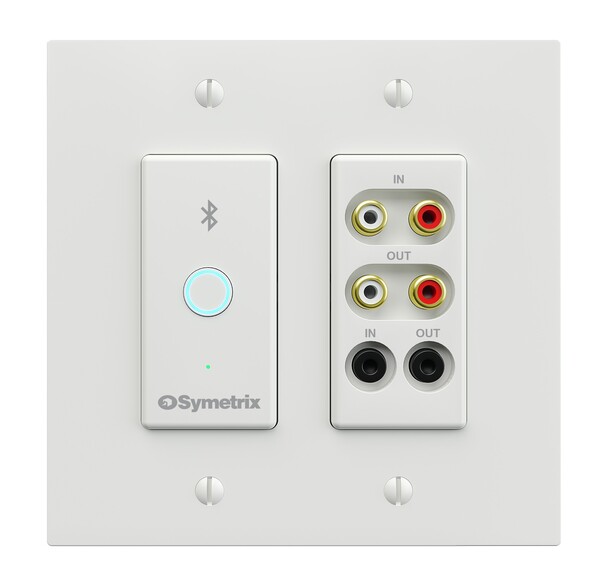

The Symetrix 80-0189 xIO Bluetooth RCA-3.5 Dante Endpoint is a versatile PoE-powered audio interface designed for wireless and wired audio streaming in Dante™-enabled AV systems. Featuring Bluetooth 5.0 connectivity, RCA inputs, and a 3.5mm auxiliary input, this wall-mounted endpoint provides seamless audio integration for conference rooms, hospitality venues, classrooms, and commercial AV environments. With AES67 support and high-quality audio processing, the xIO Bluetooth RCA-3.5 ensures low-latency, interference-free wireless performance, while the sleek white plate design blends effortlessly into modern interiors. Its PoE-powered architecture simplifies installation, making it an ideal flexible audio input solution for professional networked audio systems.
Built to be system-agnostic, the 80-0189 operates independently of any specific DSP platform and integrates seamlessly into any Dante audio flow. Whether deployed alongside Symetrix DSPs or integrated into third-party Dante ecosystems such as Q-SYS, Biamp, BSS, Yamaha, or other Dante-enabled platforms, this endpoint allows integrators to add Bluetooth and local analog connectivity without locking into a single manufacturer’s control environment.
SYMETRIX 80-0189: Dante I/O endpoint, Bluetooth media in, Bluetooth phone I/O, stereo RCA I/O, stereo 3.5mm I/O, 4x4 Dante, PoE, Decora double-gang, white
xIO Bluetooth RCA-3.5
- Dual gang Bluetooth 5.0, stereo RCA, and stereo 3.5mm PoE Dante endpoint
- Stereo RCA and 3.5mm unbalanced analog inputs with flexible routing and summing
- Simultaneous and independent stereo RCA and 3.5 mm unbalanced analog outputs
- 4 channels of Dante IO
- Selectable Bluetooth modes: Media only, Phone only, Both
- PIN code Bluetooth security
- Selectable single or multiple memorized Bluetooth pairings
- LED blackout mode
- Powerful configuration from Composer with flexible control from Symetrix remotes, SymVue touchscreens panels, or user supplied devices
- Perfect for Conferencing, Hospitality, Education, House of Worship, or Residential use
- Available with black or white finishes
- Supports standard dual gang Decora faceplates
Use Options
• Conference rooms needing Bluetooth and auxiliary input options
• BYOD environments with 3.5mm fallback connectivity
• Corporate AV and unified communications spaces
• Education classrooms and training rooms
• Hospitality meeting spaces
• Expanding any Dante system with wireless + analog inputs
Also Consider
• Symetrix Radius NX or Prism DSP processors
• PoE network switches (managed, Dante-optimized)
• Dante-enabled amplifiers (Crown, Powersoft, Ashly, etc.)
• Dante ceiling speakers
• Network cable (Cat6 shielded)
• Touch panel control systems from Symetrix or others (Crestron, Q-SYS, AMX, etc.)
System Specifications
Specification | Detail |
Display | Blue LED: Pairing Status; Green LED: Device Status; Button: Pairing control |
Compatibility | Symetrix Composer Series products |
Ethernet Cable | Standard CAT5e or CAT6, maximum device-to-device length = 100 m |
Maximum Devices per System | 128 devices per Site File |
Mechanical Specifications
Specification | Detail |
Space Required | Single-gang US or Euro wall box; WHD: 5.62 in (14.28) x 4.5 in (11.43) x 1.2 in (3.05); Depth does not include connector allowance. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections. |
Electrical | PoE IEEE 802.3af Class 0, 15 Watts maximum. No line voltage switching required. |
Ventilation | Maximum recommended ambient operating temperature is 50 C / 122 F. Avoid prolonged exposure to direct sunlight or strong ultraviolet light. |
Shipping Weight | 1.00 lbs (0.454 kg) |
Certifications and Compliance | UL/CSA/EN 62368-1; FCC 15.107:2021; FCC 15.109:2021; ICES003:2020; RoHS; EN 300 328 V2.2.2:2019; EN 301 489-1 v2.2.3:2019; EN 301 489-17 v3.2.4:2020; EN 55035; EN 55032 |
Form Factor | Single-gang US or Euro wall mount |
