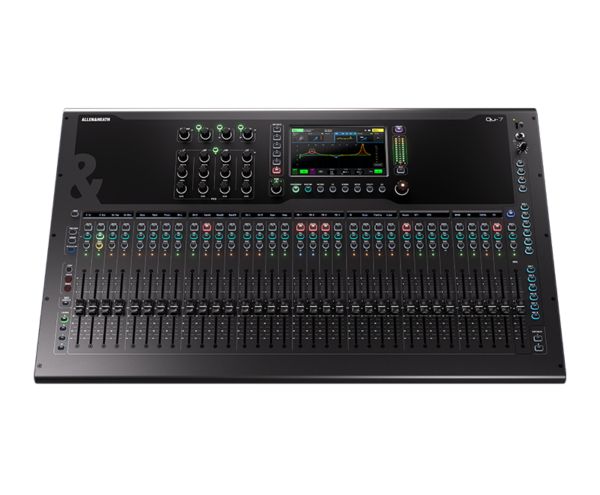

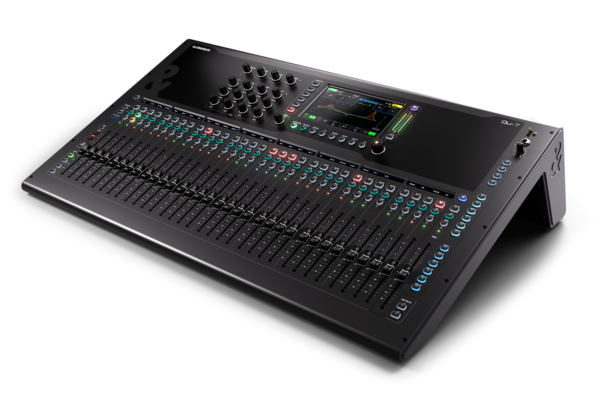

AH-QU-7 | 38IN/24OUT 96KHZ DIGITAL MIXER, 32 COMBI INPUTS & 33 MOTORIZED FADERS

Allen & Heath Qu-7 is a compact 38in/24out 96kHz digital mixer built for live sound, installed audio, worship production, theater, school auditoriums, and portable AVL systems. This standard Qu-7 version provides the upgraded Qu workflow, 33 motorized 100mm faders, 32 XLR/TRS combi mic/line input sockets, 20 XLR outputs, and flexible mixing control.

The Qu-7 gives engineers a familiar hands-on mixing surface with modern digital tools, including a 7-inch capacitive touchscreen, customizable channel strip layers, assignable SoftKeys, USB-C multichannel audio interface support, SD card multitrack recording/playback, and SLink connectivity for Allen & Heath Everything I/O expansion.

For integrators and production teams, the Qu-7 fits well in churches, schools, venues, production racks, rehearsal rooms, and live event systems where a full-size digital mixer is needed with local analog I/O, remote app control, multitrack recording, and room to grow through Allen & Heath stagebox and personal monitoring options.

Features:

• 96kHz XCVI Core
• 6 Multi-FX Engines with dedicated Stereo Returns
• DEEP Processing Ready
• 38 Inputs to Mix (32x Mono/Linkable, 3x Stereo)
• 12 Mixes (6 Mono/Linkable Aux/Group, 6 Stereo Aux/Group)
• 4 Mono/Linkable Matrix
• Stereo Main LR Output
• 32 XLR/Jack ‘Combi’ Mic/Line Input Sockets
• 2 Stereo Line Input Sockets (each 2x TRS)
• 20 XLR Output Sockets
• 1 XLR Talkback Socket
• 2 TRS Output Sockets
• 1 AES3 Stereo Digital Output Socket
• 128×128 Intelligent SLink Port for Everything I/O expansion and system connections
• 16×16 48/96 kHz Dante interface with dedicated locking EtherCon port (Qu-7D only)
• Stereo Headphone Output
• 7” Capacitive Touchscreen
• 33 100mm Motorised Faders
• 4 Channel Strip Layers
• Remote control via free apps – Windows/MacOS/iOS/Android
• 8 SoftKeys
• Configurable single/dual Footswitch Connection
• USB-A For stereo audio record/playback and data transfer
• USB-C Audio interface for multichannel record/playback (32×32)
• SD Card Slot for multichannel audio recording or playback (16×16@96kHz, 32×32@48kHz)
• 12V Lamp Socket
• Configurable Chromatic Channel Meter LED’s
