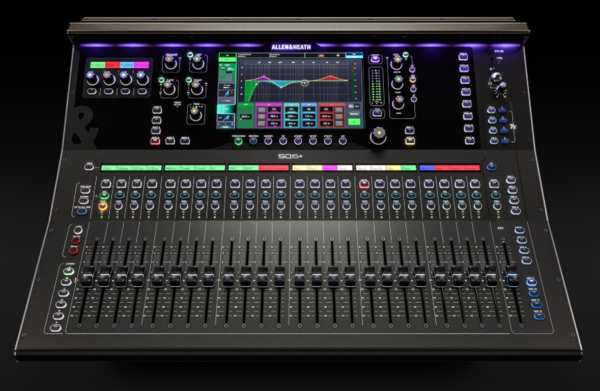

AH-SQ-6-PLUS | SQ6+ RACKULTRA FX ENABLED 48-CHANNEL DIGITAL MIXER WITH DEEP PROCESSING
AH-SQ-6-PLUS
SQ6+ RACKULTRA FX ENABLED 48-CHANNEL DIGITAL MIXER WITH DEEP PROCESSING
Click image to enlarge
AH-SQ-6-PLUS
SQ6+ RACKULTRA FX ENABLED 48-CHANNEL DIGITAL MIXER WITH DEEP PROCESSING
- UM : EA
The SQ6+ expands the range with 25 motorised faders, 16 assignable SoftKeys and 4 SoftRotaries giving you more physical control when working with larger, more complex shows. Add 4 built-in RackUltra FX engines and you have a mixer that strikes the perfect balance between hands-on control and portability.
SQ6+ Features:
Audio and Processing:
- 96kHz XCVI Core
- 48x Inputs to Mix
- 12x Stereo Aux/Group Mixes + LR
- 6x Mono/Linkable Matrix
- Full Channel and Mix processing (HPF, PEQ/GEQ, Comp, Gate)
- DEEP Processing ready
- 8x Rack Extra FX Engines with dedicated send and return channels
- 4x RackUltra FX Engines with dedicated send and return channels
Digital I/O:
- 128×128 Intelligent SLink Port for Everything I/O expansion and connection to other A&H consoles
- 1x I/O Port for option cards (SLink, Dante, Waves and MADI cards available)
- 1x AES3 Stereo Digital Output Socket
USB Recording & Playback
- USB A: 16 Channels @ 96kHz
- USB A: 32 Channels @ 48kHz
- USB B Interface: 32×32 @ 96kHz
- USB B Interface: 32×32 @ 48kHz
Analogue I/O:
- 24x XLR Mic/Line Input Sockets
- 14x XLR Output Sockets
- 3x Stereo Line Input Sockets (4x TRS ¼” sockets, 1x 3.5mm TRS socket)
- 1x XLR Talkback Socket
- 2x TRS Output Sockets
- Stereo Headphone Output
Control:
- 25x 100mm Motorised Faders
- 16x SoftKeys
- 4x SoftRotaries
- 6x Channel Strip Layers
- 9” Touchscreen with dark GUI
- Configurable single/dual Footswitch Connection
- Remote control via free apps – Windows/MacOS/iOS/Android
×
