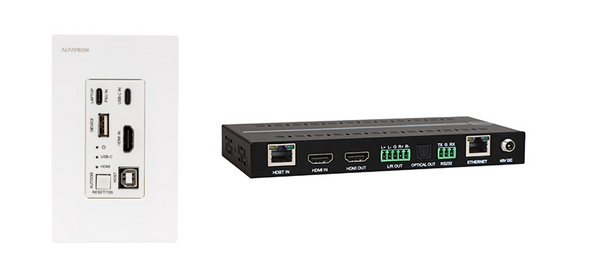

ALF-TRUK100-RS | KIT: 2X1 HDMI WITH USB-B HOST / USB-C AUTO & USB A DEVICE PORT SWITCHING WALLPLATE, POE, W/RECEIVER

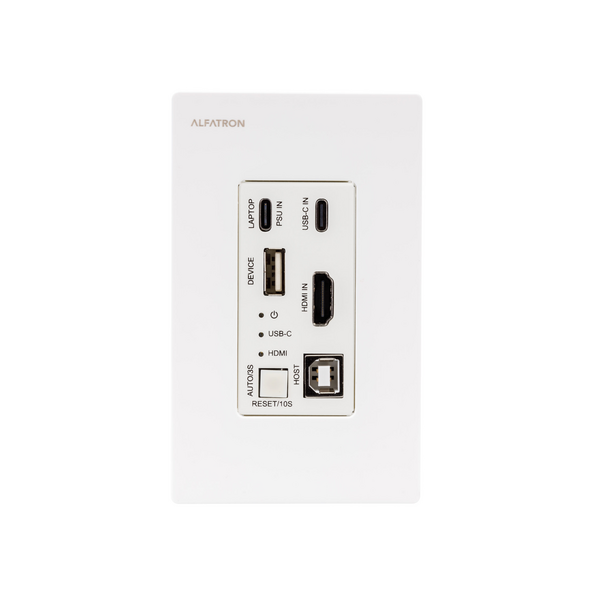

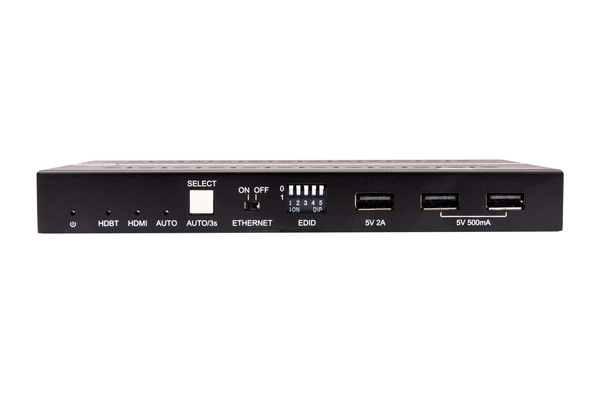

The ALF-TRUK100-RS is an 4K auto switching wall plate with HDMI, USB-C, USB over HDBaseT to a receiver.

Features:

• Extend USB-C, 0 & USB2.0 signal over HDBT2.0
• HDMI, 18G, 4K@60 4: 4: 4, HDCP 2.2 and backward compatible
• Transmission distance at 4K@60 4: 4: 4 Max up to100m ( CAT6 STP cable)
• Bandwidth rate max up to 480M/bps
• USB-C supports 4K@60 4: 2: 0
• USB-C charging port, Max supports 100 W PD, to charge the connected PC
• HDMI In on Rx for BYOD devices and with Auto-SW control
• De-embedded audio (analog and optical) at Rx
• RS232 pass through from Tx to Rx
• Supports Auto SW and manual mode via button
• Support 48v PoC function (only from Rx to Tx)
• EDID & HDCP management on Dip switch
• Support 3D, HDR10 and Dolby Vision
• Ethernet port for USB-C or USB-B Ethernet usage and support Ethernet ON/OFF control

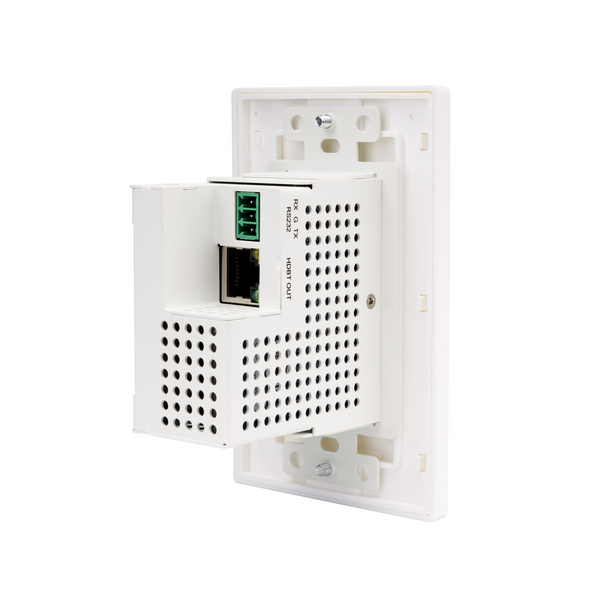

• US one-gang enclosure for Decora-style at Tx
• Standard ALFATRON RS232 code format
