ATW-D50-DRX-2BL | 2-CHANNEL BODY-PACK SYSTEM WITH LAVALIER MICS

ATW-D50-DRX-2BL
2-CHANNEL BODY-PACK SYSTEM WITH LAVALIER MICS

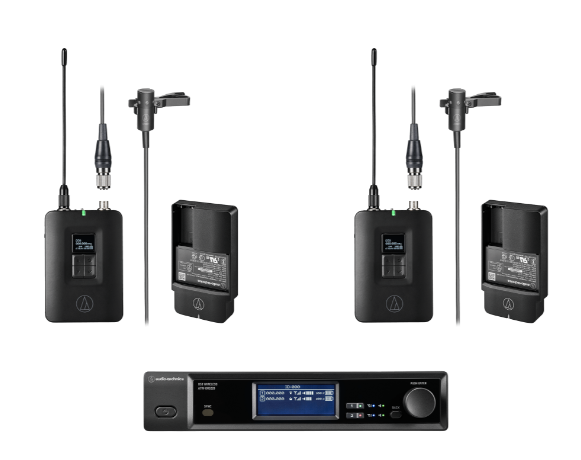

This D50 2-channel body-pack system features the Audio-Technica LINK-enabled 2-channel receiver, two ATW-DT3201 compact body-pack transmitters, and two AT831cH wireless clip-on lavalier mics.

The half-rack receiver operates in one of two switchable RF modes: normal mode (Antenna Combining Diversity) or robust mode (MRC True Diversity) for greater RF stability. Up to four receivers can be linked and operated without antenna distribution, requiring only a single pair of antennas. Plus, the system’s HD (high-density) mode gives users the option of expanding the number of usable frequencies from the standard 17 within a 6 MHz TV channel block to 47 frequencies in HD – a feature that can be especially useful in the congested RF environments of large cities.

The receiver comes with an AC adapter, but can also be powered by PoE+, either exclusively or as a backup power source for the AC.

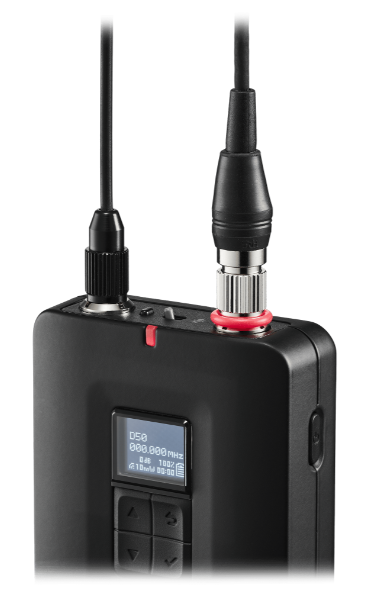

The ATW-DT3201 is a compact body-pack transmitter equipped with a cH-style screw-down 4-pin input connector for secure connection with compatible lavalier mics, headworn mics, and cables. External control buttons and an OLED status display make the transmitter easy to use, and a special SideTrack function allows users to switch audio to a second output — providing discrete live communications with fellow performers or audio engineers.

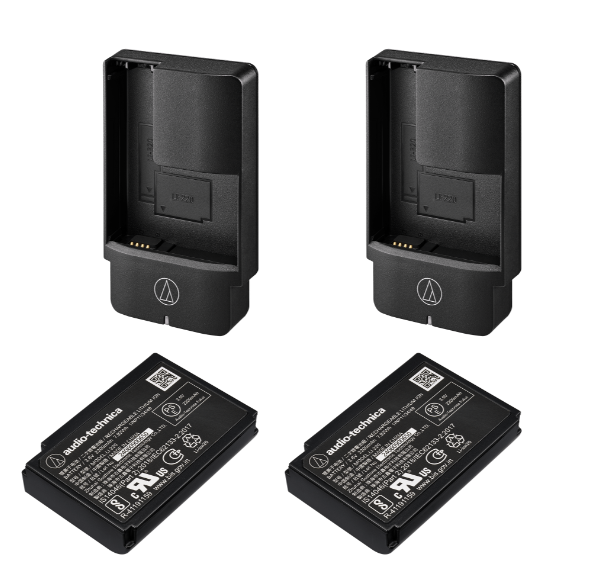

The transmitter is powered by a custom-designed lithium-ion battery, providing best-in-class battery life. The battery can be charged in the transmitter, using the ATW-CHG6 two-bay charging station (sold separately), or can be removed from the transmitter and charged separately in the ATW-CHGA6 battery charger (Included with this system).

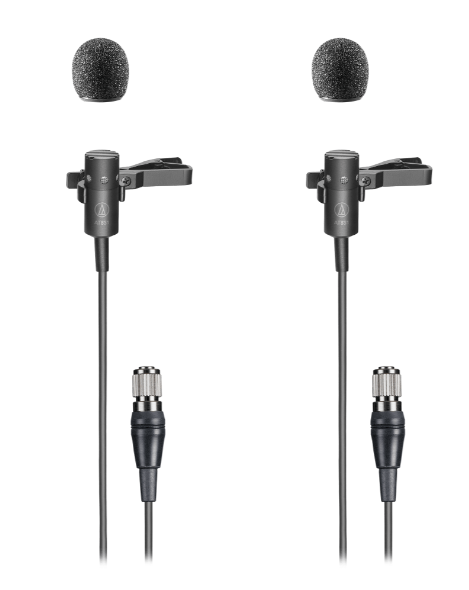

The AT831cH wireless clip-on lavalier mic provides crisp, full-sounding voice pickup, and offers excellent gain before feedback and suppression of background noise. Includes windscreen and clothing clip.

Features

ATW-DR3220LK Receiver Features

• Audio-Technica LINK-enabled, 2-channel, half-rack receiver
• Full tuning bandwidth of up to 244 MHz, depending on region (up to 138 MHz in the U.S.), in the broadcast range enables flexible channel planning in complex RF environments
• Switchable between normal mode (Antenna Combining Diversity) and robust mode (MRC True Diversity), which offers superior RF stability
• User can switch from Standard mode (17 frequencies per 6 MHz TV channel) to HD mode (47 frequencies per 6 MHz TV channel) when operating in congested urban RF environments
• Onboard DSP offers high-pass filter, 4-band EQ, and compressor settings for each channel
• Supports AES256 encryption for superior security
• Equipped with a network port for monitoring and device configuration via Wireless Manager
• Receiver can be powered by included AC adapter or PoE+; PoE+ also provides redundancy to keep the receiver powered if AC drops out
• Receiver can be set to mixed output in situations where input channels are limited
• Spectrum analysis (accessible via receiver’s front-panel display and/or Wireless Manager software) and IR sync functionality make setup easy
• Wireless Manager’s system management tools include those to configure detailed EQ and COMP settings, and an advanced walk test for visual confirmation of multiple RF conditions
• Multipoint receiver function allows a transmitter to be detected by multiple D50 networked receivers, with Wireless Manager software automatically switching to the receiver that has the best signal
• Included short and long rack ears can be used to mount one receiver in a half-rack space and two long ears can be combined as a joining plate to mount two receivers in a full space
• TAA-compliant (U.S.); Radio Equipment Directive (RED) cybersecurity-compliant (EU)
• Firmware updates are performed in Wireless Manager

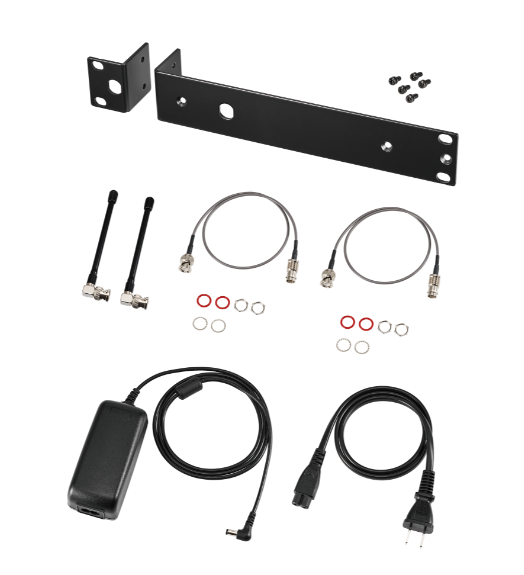

• Includes: ATW-DR3220LK receiver, short and long rack ear kit, power supply, antennas, front-mount antenna kit

ATW-DT3201 Transmitter Features

• Rugged cH-style connector provides secure connection to lavalier mics, headworn mics, and cables with a cH-style screw-down 4-pin connector
• Features external control buttons, mute switch, OLED display, and a SideTrack function that enables switching between multiple outputs
• Powered by a custom-designed lithium-ion battery for best-in-class battery life and convenient charging in the ATW-CHG6 two-bay charging station (sold separately) or ATW-CHGA6 battery charger (included with ATW-DT3201DF2C)

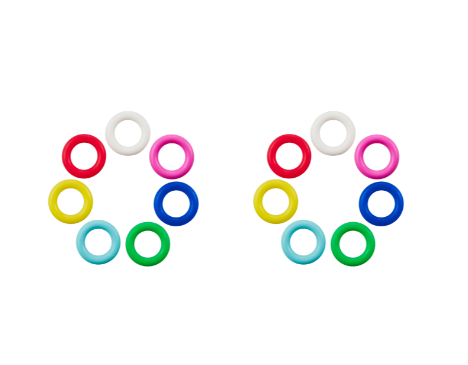

• Seven-color LED, along with seven physical color rings, make it easy to color code each channel
• IR sync functionality enables easy synchronization with receiver
• Best-in-class, all-metal construction
• Includes: two ATW-DT3201 Body-pack transmitters, two ATW-CHGA6 battery chargers, two LI-220 rechargeable lithium-ion batteries, two ATW-TI10 color ring indicator kits, two AT831cH wireless cardioid condenser lavalier microphones
