CBT 50LA-LS-WH | 50CM TALL COLUMN SPKR, WH,EN54 1 PER CARTON, 1 PER MASTERPACK
CBT 50LA-LS-WH
50CM TALL COLUMN SPKR, WH,EN54 1 PER CARTON, 1 PER MASTERPACK
Click image to enlarge
CBT 50LA-LS-WH
50CM TALL COLUMN SPKR, WH,EN54 1 PER CARTON, 1 PER MASTERPACK
- UM : EA

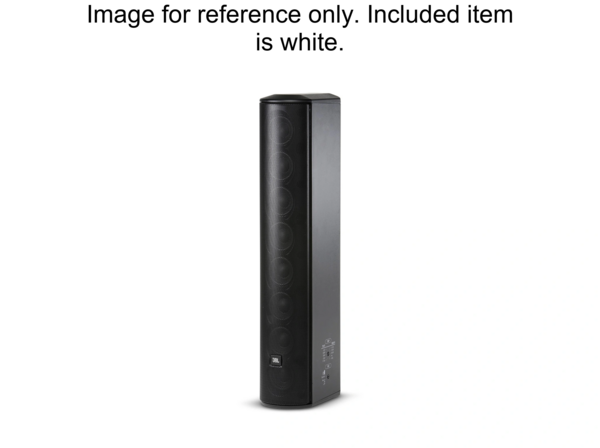

The CBT 50LA-LS-WH is a line array column loudspeaker featuring eight 50 mm (2 in) drivers. It employs Constant Beamwidth Technology™ that uses analog delay beamforming and amplitude tapering to achieve uniform vertical coverage, minimizing narrow vertical beaming and reducing out-of-coverage lobing typically observed in passive column speakers.
Features:
- Constant Beamwidth Technology for consistent directivity
- EN 54-24 compliant for life safety
- Switchable voicing: music or speech mode
- Dynamic SonicGuard overload protection
- Built-in 70V/100V transformer and 8 ohm direct capability
- Swivel and tilt wall bracket included
| Drivers | Eight 50 mm full-range |
|---|---|
| Frequency Range (-10dB) | 120 Hz – 20 kHz |
| Coverage Pattern Vertical | 20° (1.5 kHz - 16 kHz, ±10°) |
| Horizontal Coverage | 0.5 kHz: 360°, 1 kHz: 247°, 2 kHz: 194°, 4 kHz: 135° |
| Sensitivity (1W/1m, speech mode) | 93 dB (2 kHz - 14 kHz) |
| Sensitivity (1W @ 4m, speech mode) | 78.8 dB SPL (100 Hz - 10 kHz) |
| Nominal Impedance | 8Ω (bypass mode) |
| Power Rating | 150W (600W peak, 2 hrs), 100W (400W peak, 100 hrs) |
| Maximum SPL | Speech 115 dB cont ave (121 peak @ 1m), 103 dB cont ave (109 peak @ 4m) |
| Outdoor Capability | IP-55 rated, UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant |
×
