COLORDASHPARBAR4 | COLORDASH PAR BAR 4
COLORDASHPARBAR4
COLORDASH PAR BAR 4
COLORDASHPARBAR4
COLORDASH PAR BAR 4
- UM : EA
- Estimated Weight: 43.0

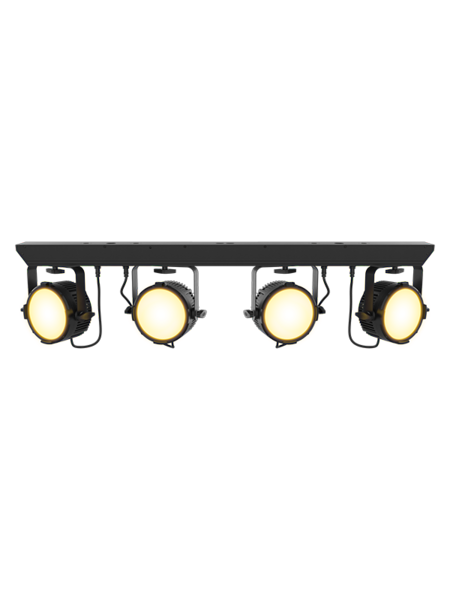

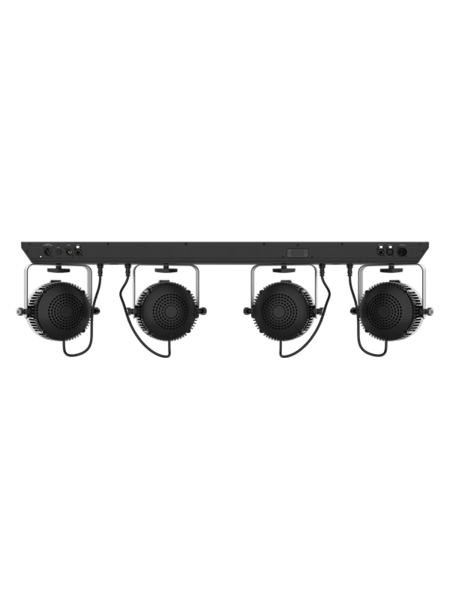

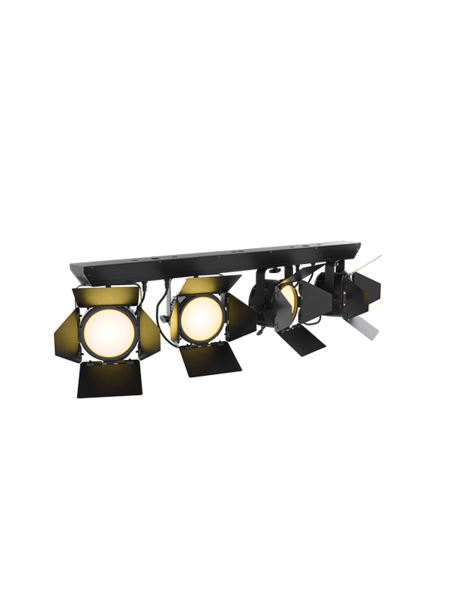

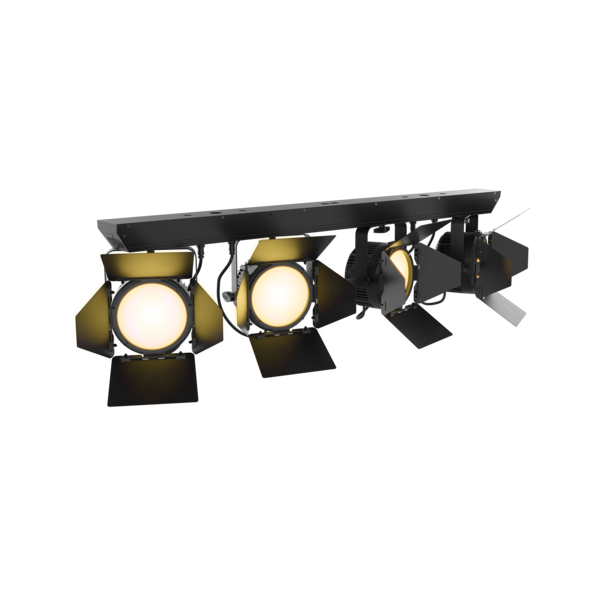

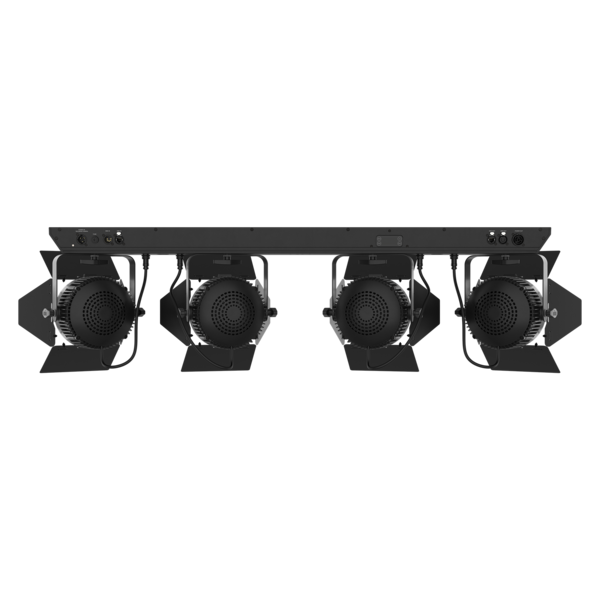

A complete wash light solution designed with convenience and versatility in mind for small theatres, events and multi-use spaces. COLORdash Par Bar 4 comes with all the features and accessories to shape light coverage to your needs. Independently focus each of four RGBAW-UV LED heads, change beam angles from 15° to 30° with the included wide filter, and keep light where it’s wanted with four-leaf barndoors. Selectable dimming curves mean fades are always smooth, and superior optics produce smooth color mixes. Advanced electronics with adjustable pulse width modulation make for flicker-free on-camera performance. Connect to DMX control via 5-pin XLR or with standard CAT6 Ethernet cable. A touchscreen interface and multiple mounting options complete this versatile package.
Features:
- Generates a comprehensive color palette, including true UV, from four high-power LED arrays.
- Offers flexible beam control, adjusting from 15° to 30° with an included wide filter.
- Supports DMX and RDM control via 5-pin XLR or a standard CAT6 Ethernet connection.
- Features adjustable PWM to eliminate on-camera flicker for broadcast and recording applications.
- Delivers exceptionally smooth fades with a choice of four selectable dimming curves.
- Simplifies setup with power linking for up to 4 units at 208 V.
| Light Source | 1, RGBAW-UV LED Array (per head) |
|---|---|
| Beam Angle narrow (Single Par) | 15.3° |
| Field Angle narrow (Single Par) | 29.8° |
| Beam Angle wide (Single Par) | 30.4° |
| Field Angle wide (Single Par) | 49.4° |
| Lumens (Single Par) | 4305 lm |
| Lumens (All Pars) | 17930 lm |
| Illuminance Narrow (Single Par) | 1482 lux @ 5 m |
| Illuminance Wide (Single Par) | 510 lux @ 5 m |
| Selectable PWM | 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz |
| Power Connection | Edison (Local) plug to Seetronic Powerkon IP65 |
| Power Input | Seetronic Powerkon IP65 |
| Power Output | Seetronic Powerkon IP65 |
| Data Connectors | 5-pin XLR, Neutrik etherCON or Amphenol XLRnet (etherCON Compatible) |
| Cable Length (power) | 5 ft (1.5 m) |
| Control Protocol | DMX, RDM |
| DMX Channels | 6,8,9,14,24,32,36,41 |
| Modes/Personalities | 8 personalities (6,8,9,14,24,32,36,41) |
| Certifications | CE, MET, FCC, UKCA |
| IP Rating | IP20, dry location |
| Temperature (Ambient) | 32 °F to 104 °F (0 °C to 40 °C) |
