CONTROL 424LP | 4" CRBI™-EQUIPPED TWO-WAY COAXIAL CEILING LOUDSPEAKER WITH LOW-PROFILE ENCLOSURE
CONTROL 424LP
4" CRBI™-EQUIPPED TWO-WAY COAXIAL CEILING LOUDSPEAKER WITH LOW-PROFILE ENCLOSURE
CONTROL 424LP
4" CRBI™-EQUIPPED TWO-WAY COAXIAL CEILING LOUDSPEAKER WITH LOW-PROFILE ENCLOSURE
- UM : EA

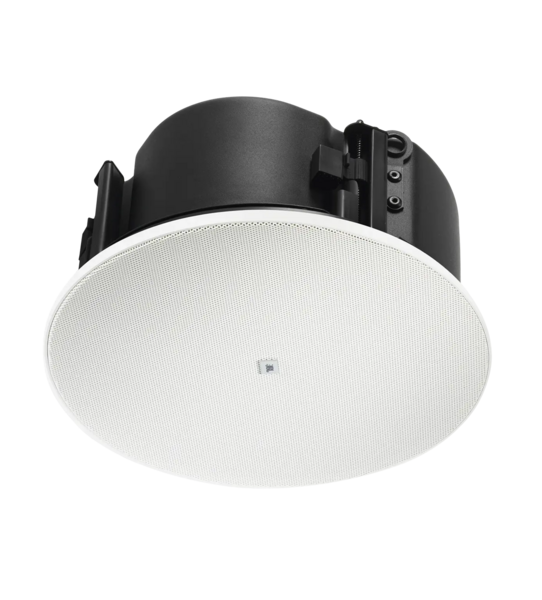

The JBL Control 424LP is a two-way coaxial ceiling loudspeaker, featuring a 4" woofer and a low-profile enclosure that is ideal for applications where ceiling plenum space is restricted. Integrated CRBI technology provides 130° of consistent, full, rich sound character that closely matches that of the Control 424C/T. A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available. Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses. Like all Control 400 Enhanced Coverage models, the Control 424LP includes a transformer to support both 70V/100V and low impedance applications.
Features:

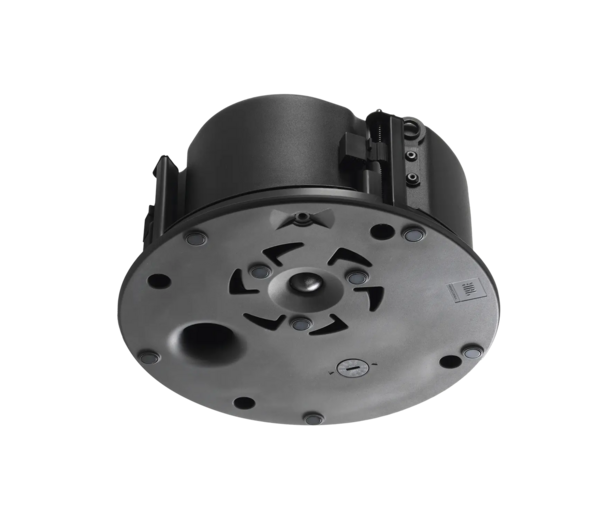

- Coaxially mounted 100 mm (4 in) woofer and 19 mm (0.75 in) soft-dome tweeter

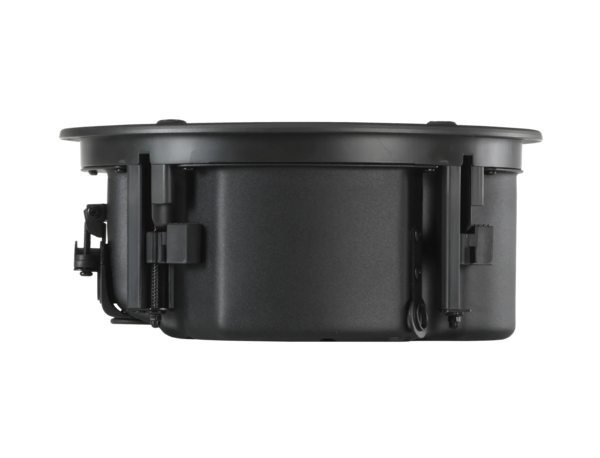

- Low-profile enclosure (<100mm deep) for installing where ceiling plenum space is restricted
- CRBI technology for consistent 130° coverage across the listening area
- Built-in 70V/100V multi-tap transformer, plus 16-ohm direct input

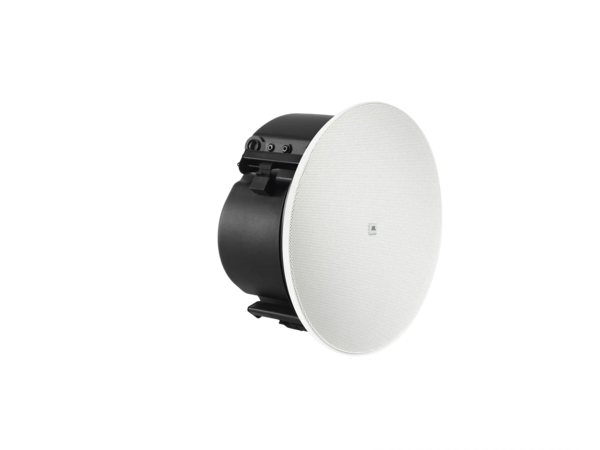

- Full-face, easily paintable magnetic grilles

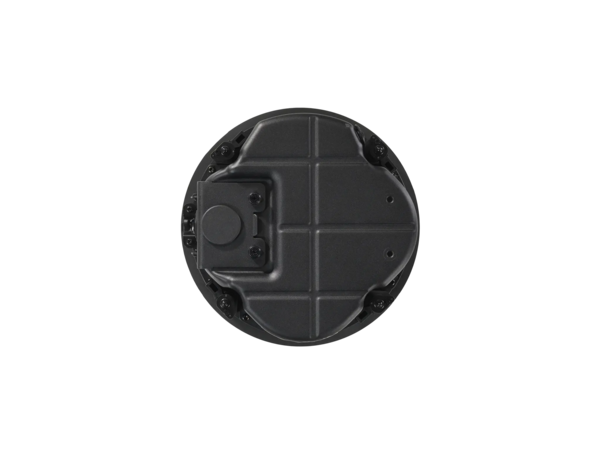

- Top and side exit cable entry options
- Robust and adaptable dogears for wide range of ceiling thicknesses
- IP33 rated
| Frequency Range (-10 dB) | 75 Hz – 18 kHz |
|---|---|
| Power Capacity | 120 W Continuous Program (2 hrs) 60 W (240 W Peak), Continuous Pink Noise (2 hrs) 40 W (160 W Peak) Continuous Pink Noise Power (100 hrs) |
| Sensitivity | 85 dB |
| Coverage Angle | 130° conical |
| Maximum SPL (1m) | 103 dB continuous pink noise (109 dB peak) |
| Nominal Impedance | 16 ohms |
| Transformer Taps | 70 V: 30 W, 15 W, 7.5 W & 3.7 W 100 V: 30 W, 15 W, 7.5 W |
| LF Driver | 100 mm (4 in) |
| HF Driver | 19 mm (0.75 in) |
| Dimensions | 107 mm (4.2 in) H x 253 mm (9.9 in) dia. 98 mm (3.9 in) from bottom of ceiling tile to top of backcan (with wire exit positioned on side of backcan). |
| Ceiling Cutout Size | 224 mm (8.8 in) |
| Safety Agency Rating | Suitable for use in air handling spaces per UL1480A, UL2043, NFPA90 & NFPA70, S7232/UL Listing, Speakers for Commercial and Professional Use. Listed per CSA C22.2, no. 205 Signal Equipment. In accordance with IEC60849/ EN60849. |
| Environmental | Exceeds Mil Spec 810H for humidity, salt spray, temperature & UV. IP33 rating per EN/IEC 60529 against solid object and water ingress. Compliant with RoHS2 per EN/IEC63000. Operating temperature 0°C to 45°C |
| Color | Stock baffle is white, paintable. |
