CONTROL 426C/T | 6.5" FULL-RANGE CEILING SPEAKER, 110° CONICAL COVERAGE, 70V/100V PLUS 12-OHM ($ EA, BUY IN PAIRS)
CONTROL 426C/T
6.5" FULL-RANGE CEILING SPEAKER, 110° CONICAL COVERAGE, 70V/100V PLUS 12-OHM ($ EA, BUY IN PAIRS)
CONTROL 426C/T
6.5" FULL-RANGE CEILING SPEAKER, 110° CONICAL COVERAGE, 70V/100V PLUS 12-OHM ($ EA, BUY IN PAIRS)
- UM : EA
- Estimated Weight: 31.0

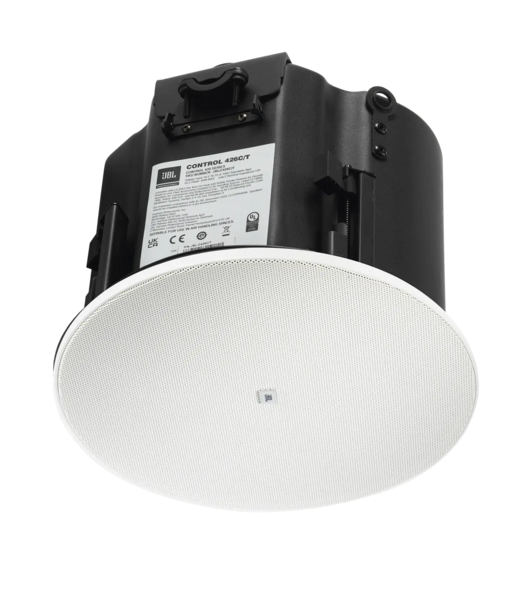

The JBL Control 426C/T is a premium, compact 6.5" two-way coaxial ceiling loudspeaker featuring JBL’s proprietary CRBI™ (Coplanar Radiation Boundary Integrator) technology, which ensures smooth, consistent 110° conical sound coverage throughout the listening area. Ideal for commercial spaces such as conference rooms, retail settings, restaurants, and learning environments, with its integrated enclosure fits standard ceiling plenum spaces. It includes a 60W multi-tap transformer for 70V/100V systems plus a 12Ohm direct-drive bypass, making it flexible for both distributed audio and low-impedance setups. Installation is streamlined with top- and side-entry cable access and a robust dog-ear system compatible with various ceiling thicknesses. The sleek, full-face magnetic grille with safety tether integrates seamlessly with modern interiors. Rugged enough for air-handling spaces, it is IP33-rated.
Features:
- 165 mm (6.5 in) coaxial woofer
- 25 mm (1.0 in) soft-dome tweeter
- Integrated enclosure for ceiling plenum installation
- CRBI technology for consistent 110° coverage
- Built-in 70V/100V multi-tap transformer with 12-ohm direct input
- Full-face paintable magnetic baffles
- Top and side exit cable entry options
- Adjustable dogears for various ceiling thicknesses
- IP33 rated
| Frequency Range | 72 Hz – 19 kHz |
|---|---|
| Power Capacity | 220 W Continuous Program (2 hrs), 110 W (440 W Peak), 75 W Continuous Pink Noise (2 hrs), 300 W Peak Continuous Pink Noise Power (100 hrs) |
| Sensitivity | 89 dB |
| Coverage Angle | 110° conical |
| Maximum SPL (1m) | 109 dB continuous pink noise, 115 dB peak |
| Nominal Impedance | 12ohms |
| Transformer Taps | 70 V: 60 W, 30 W, 15 W, 7.5 W; 100 V: 60 W, 30 W, 15 W |
| LF Driver | 165 mm (6.5 in) |
| HF Driver | 25 mm (1.0 in) |
| Safety Agency Rating | Suitable for use in air handling spaces per UL1480A, UL2043, NFPA90 & NFPA70, S7232/UL Listing, Speakers for Commercial and Professional Use; Listed per CSA C22.2 no. 205 Signal Equipment; In accordance with IEC60849/EN60849 |
| Environmental | Exceeds Mil Spec 810H for humidity, salt spray, temperature & UV; IP33 rating per EN/IEC 60529; Compliant with RoHS2 per EN/IEC63000; Operating temperature 0°C to 45°C |
| Color | Stock baffle is white (RAL9003), paintable |
