D-PSP1F | DECORA-STYLE ACTIVE LOUDSPEAKER - WHITE - INSTALLER LEVEL ADJUST
D-PSP1F
DECORA-STYLE ACTIVE LOUDSPEAKER - WHITE - INSTALLER LEVEL ADJUST
D-PSP1F
DECORA-STYLE ACTIVE LOUDSPEAKER - WHITE - INSTALLER LEVEL ADJUST
- UM : EA

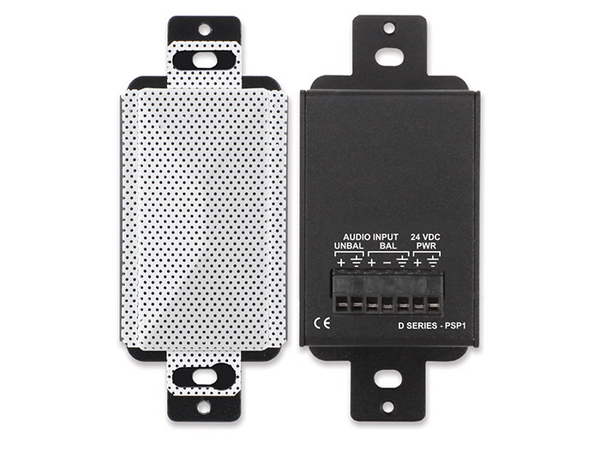

The D SERIES-PSP1F is a compact active loudspeaker that delivers rich, detailed sound in Decora-compatible wall or chassis mounts. The input accepts either a -10 dBV unbalanced or a +4 dBu balanced signal on the rear-panel detachable terminal block. Amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation. The amplified output level is set by the installer using a volume control located behind the speaker grill. The PSP1F includes an analog compressor/limiter that makes higher average sound output levels possible without clipping.
The driver is constructed of materials found in premium larger speakers. The unique steel enclosure provides full baffling in a tightly sealed rigid structure. This produces sonic presence within an extended frequency range expected from larger speakers. Internal filtering rolls off out-of-band frequencies to reduce distortion and increase peak power capability. Dispersion covers a spherical area of nearly 180 degrees with the speaker mounted in a wall.
Features:
- Exceptional Audio Quality for Ultra-Compact Size
- 2 Watt RMS Audio Amplifier
- Compressor/Limiter Prevents Clipping
- Balanced +4 dBu Input on the Rear Panel
- Unbalanced -10 dBV input on the Rear Panel
- Gain Set by the Installer
- Acoustically Optimized Decora Enclosure
- Fidelity Comparable to Larger Drivers
- Hemispherical Dispersion Mounted In Wall or Flat Surface
Inputs (2) | 30 kΩ balanced or 10 kΩ unbalanced |
---|---|
Input Level | +4 dBu nominal (Balanced) -10 dBV nominal (Unbalanced) |
Minimum Input Level | -18 dBu (Balanced, Max. gain) -19 dBV (Unbalanced, Max. gain) |
Maximum Input Level | +22 dBu |
Gain Adjustment | Single-turn audio taper (set by installer) |
Maximum SPL | 81 dB |
Frequency Range | 150 Hz to 20 kHz, nominal |
CMRR | > 50 dB (50 Hz to 120 Hz) |
Power Requirement | 24 Vdc @ 55 mA (Idle) 100 mA (maximum), Ground-referenced |
Ambient Operating Environment | 0° C to 40° C Maximum 20° C Recommended |
Dimensions | Height: 4.12 in. 10.46 cm Width: 1.72 in. 4.37 cm Depth: 2.64 in. 6.7 cm |
Package Type | Cardboard Box |
Package Dimensions | 3.625 x 4.625 x 2.125 in. |
Shipping Weight | .573 lbs. |
WEEE weight | .43 lbs. |
Tariff code | 8518.21.0000 |
