DATASTREAM8 | FLEXIBLE DMX SPLITTER PROVIDES UP TO 8 OUTPUTS FROM DUAL INPUTS, 1RU

  • MAP: $479.99 / EA
  • List Price: $639.99 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 2
  • Sign In or Submit RFQ for accurate lead times
FLEXIBLE DMX SPLITTER PROVIDES UP TO 8 OUTPUTS FROM DUAL INPUTS, 1RU
FLEXIBLE DMX SPLITTER PROVIDES UP TO 8 OUTPUTS FROM DUAL INPUTS, 1RU
Click image to enlarge
FLEXIBLE DMX SPLITTER PROVIDES UP TO 8 OUTPUTS FROM DUAL INPUTS, 1RU
FLEXIBLE DMX SPLITTER PROVIDES UP TO 8 OUTPUTS FROM DUAL INPUTS, 1RU

DATASTREAM8
FLEXIBLE DMX SPLITTER PROVIDES UP TO 8 OUTPUTS FROM DUAL INPUTS, 1RU

  • UM : EA
  • Estimated Weight: 13.0

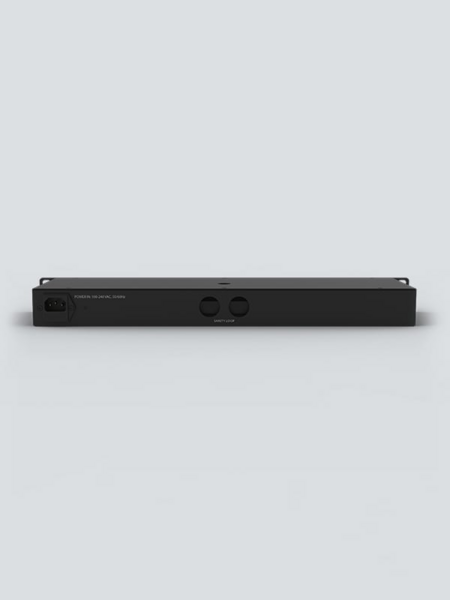

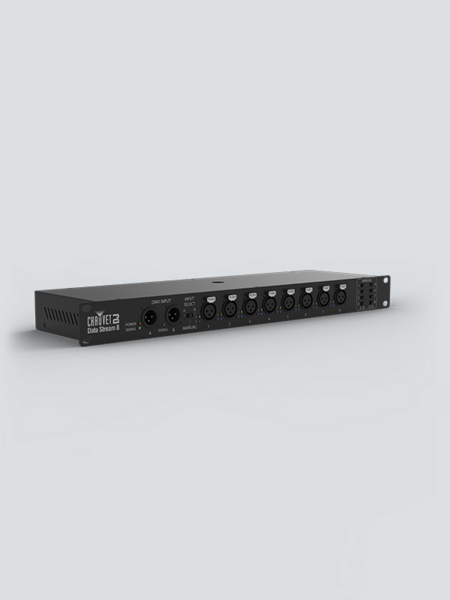

Data Stream 8 is a flexible DMX splitter designed to distribute and boost incoming DMX signals from dual inputs into 8 separate outputs via a master 3-position switch. Each input can be used simultaneously and sent to any output. Individual 2-position switches can also send data from either the A or B input separately. Each of the outputs is optically isolated from the others providing protection in the event of a short. A threaded insert allows the unit to be safely secured to trussing.

Features:

  • Flexible DMX splitter provides up to 8 outputs from dual inputs
  • Each input can be used simultaneously and sent to any output
  • Master 3-position switch quickly sends A or B input to all 8 outputs
  • Individual 2-position switches send data from either the A or B input
  • Optically isolated outputs provide protection in the event of a short
  • Threaded insert safely secures to overhead truss
Dmx connectors:3-pin XLR
Rackmount:1U
Input voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and current:2 W, 0.04 A @ 120 V, 60 Hz
2 W, 0.03 A @ 230 V, 50 Hz
Weight:4.6 lbs (2.1 kg)
Size:19 x 5.2 x 1.7 in (483 x 132 x 44 mm)
Approvals:CE
