DNA-10K4 PRO | 4CH AMPLIFIER 2500W/CHANNEL (PRO SERIES - FRONT PANEL CONTROL)
DNA-10K4 PRO
4CH AMPLIFIER 2500W/CHANNEL (PRO SERIES - FRONT PANEL CONTROL)
DNA-10K4 PRO
4CH AMPLIFIER 2500W/CHANNEL (PRO SERIES - FRONT PANEL CONTROL)
- UM : EA
- Estimated Weight: 32.0
The DNA-10K4 PRO is a four-channel Class D amplifier platform delivering a total output of 10,000W RMS. It incorporates digital signal processing with DSP Drive Modules for loudspeaker management and supports analog, AES3, and Dante digital network audio inputs. The device features an over-designed switch-mode power supply to support its power requirements.

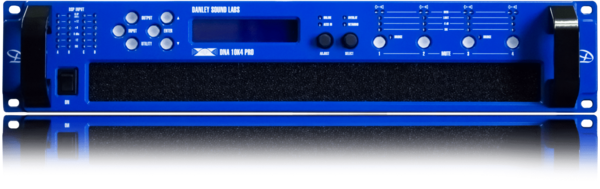

The unit offers a front panel user interface and Ethernet-based remote control software for system operation, configuration, performance monitoring, and analytics. It also supports advanced grouping capabilities for multi-layer equalization and control of large audio systems.
| 2ohms | 2500W |
|---|---|
| 4ohms | 2500W |
| 8ohms | 1500W |
| 4ohms Bridged | 5000W |
| 70V Line Operation | 2500W |

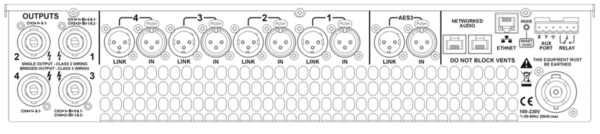

| Physical Inputs | 4 analog, 2 AES, 4 Dante inputs to four DSP drive modules |
| Drive Module Input Processing | routing, delay, gain, HPF, phase, mute, EQ (2 low shelf, 6 PEQ/band pass, FIR shelving filters) |
| Drive Module Output Processing | source, delay, gain, phase, mute, crossover, VX limiters, EQ (low shelf, 8 PEQ/band pass, FIR shelving filters) |
| Overlays | 12 independent overlays of EQ, delay, gain with flexible grouping for amplifier channel control |
| Connector Type | L6-20 |
