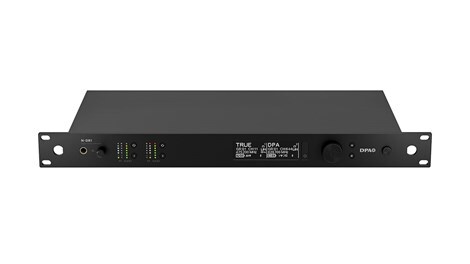

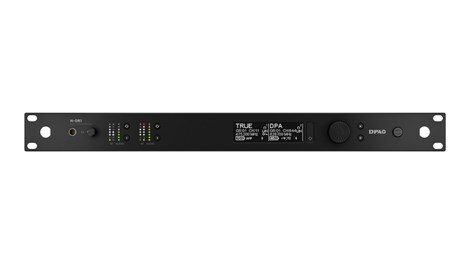

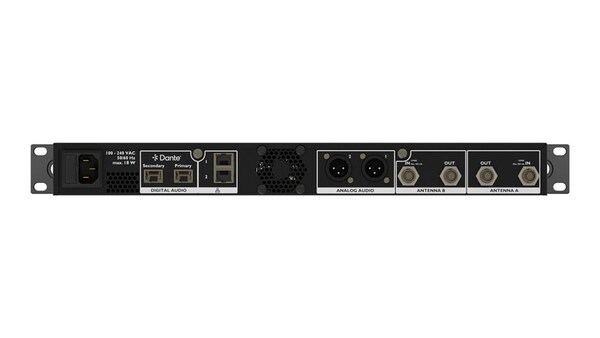

DPA-N-DR1 | N-Series Dual Channel Digital Wireless Receiver w. DANTE Output, 870 MHz
DPA-N-DR1
N-Series Dual Channel Digital Wireless Receiver w. DANTE Output, 870 MHz
DPA-N-DR1
N-Series Dual Channel Digital Wireless Receiver w. DANTE Output, 870 MHz
- UM : EA
N-Series offers the N-DR1 Digital Dual Channel Receiver, designed with ease-of-use in mind and packed with high-end functionality.
Specifications
RF Tuning Steps 25 kHz
RF Frequency Range 470 - 870 MHz (Varies by region)
RF Sensitivity -96 dBm at 10^-5 BER
Audio Polarity Positively increasing sound pressure produces positive going voltage on relevant audio outputs
Working Range 100 m (330 ft) Range depends on the RF enviroment, i.e. absorption, reflection and interference
Audio Dynamic Range (system) analog 126 dB
Audio Dynamic Range (system) Digital 126 dB
Digital Audio Trim -20 dB to +40 dB on the receiver side, selectable in increments of 1 dB
Latency <2.9 ms
Dante Interface Primary / Secondary on separate connectors from Control Network
Housing Type Steel and Aluminium
Operating Temperature -10°C to 50°C (14°F to 122°F)
Storage Temperature -20°C to 50°C (4°F to 122°F) Without batteries installed
Dimension (H x W x D) 44 mm (1.7 in) x 482 mm (19.0 in) x 246 mm (9.7 in)
Audio Frequency Response 20 - 20 kHz (±1 dB)
RF Input Impedance 50 ?
RF Input Bias Voltage 12 volts, max 250 mA per antenna
RF Input Connector type BNC
Dante Sample Rates 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Network Interface Switched (dual port) Ethernet, max 100 Mbps
Network Addressing DHCP or Manual IP
Analog Output Impedance 66 ? (Only applicable for Receivers with Analog Outputs)
Analog Output Signal Level Switchable Line or Mic (-30 dB pad) (Only applicable for Receivers with Analog Outputs)
Analog Audio Reference 0 dBu to 20 dBu for full scale output, selectable in increments of 1 dB (Only applicable for Receivers with Analog Outputs)
Supply Voltage, Autosensing 100VAC - 240VAC
Power, Max 28 W
Weight 3,6kg (7.9 lb)
