FSII-BASE-II-5 | FS II DIGITAL WIRELESS BASE STATION 5BP: FREESPEAK II DIGITAL LICENSE-FREE WIRELESS BASE STATION
FSII-BASE-II-5
FS II DIGITAL WIRELESS BASE STATION 5BP: FREESPEAK II DIGITAL LICENSE-FREE WIRELESS BASE STATION
FSII-BASE-II-5
FS II DIGITAL WIRELESS BASE STATION 5BP: FREESPEAK II DIGITAL LICENSE-FREE WIRELESS BASE STATION
- UM : EA
- Estimated Weight: 6.0

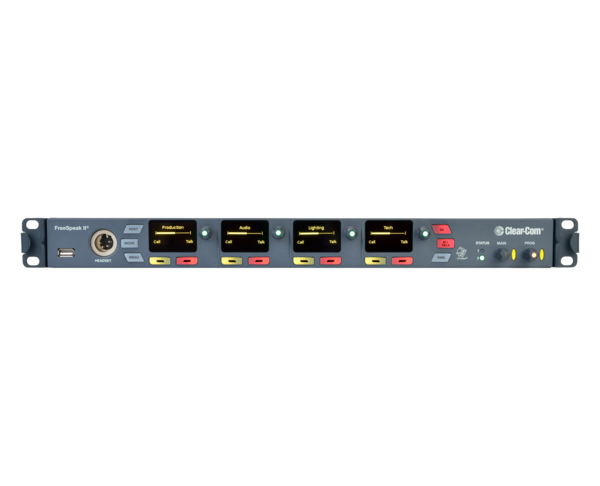

The FSII-BASE-II-5 is a base station for the wireless FreeSpeak II 1.9 GHz and 2.4 GHz active transceiver antennas and beltpacks. The FSII-BASE-II has four 2-wire connections for analog partyline connection, four 4-wire audio connections and four displays with soft keys. Dedicated stage announce (SA) output and program audio input are provided.
Details
FreeSpeak II Base Station
- Wireless Intercom Base Station
- Partyline 2-Wire Integration
- Line-Level 4-Wire Interfacing
- Headset User Station
- CCM™ browser configuration & monitoring
- Front panel configuration & monitoring
- Plug-and-go transceivers and beltpack pairing
Capacity
- FreeSpeak Wireless Intercom
(10) E1 Transceivers (1.9, 2.4 GHz)
(5) or (25) Beltpacks (1.9, 2.4 GHz)
Configuration
- (12) Channels
- (12) Groups
- (50) Roles for FreeSpeak with Point-To-Point Key Assignments
Connectivity
- (4) 4-Wire – Line-Level
- (4) 2-Wire - 400mA per pair
- (1) Program Audio Input
- (1) Stage Announce Output
- (2) GPI Input
- (4) GPO Relay
- (2) FreeSpeak E1 - RJ45/SFP switchable
- (2) LAN – Pass Through for Management
