HA-1060EN | Horn Array Speaker

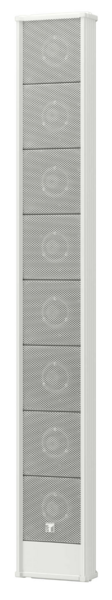

HA-1060EN
Horn Array Speaker
Click image to enlarge
HA-1060EN
Horn Array Speaker
- UM : EA
The HA-1060EN is a horn speaker array consisting of multiple horn speakers arranged to provide voice transmission over long distances. It includes a built-in high-pass filter designed to attenuate bass frequencies that might damage the speaker. The enclosure features a double drip-proof structure and a salt-resistant paint finish to enhance durability in outdoor, permanent installations.
This model is certified to the European Standard EN 54-24:2008 for loudspeakers used in voice alarm systems for fire detection and alarm applications and complies with British Standard BS 5839-8:2008. The Declaration of Performance (DoP) number is 23-103.
Features:
- Horn array for clear long-range voice projection
- IP66-rated for outdoor use
- Weatherproof with double drip-proof design
- Salt-resistant paint finish
- Wide horizontal coverage
- Built-in high-pass filter for speaker protection
- EN 54-24 compliant for evacuation systems
- Optional mounting bracket for flexible installation
| Rated Input | 60 W |
|---|---|
| Rated Impedance | 100 V line: 170 Ω (60 W), 330 Ω (30 W) |
| Sensitivity | 111 dB (1 W, 1 m) (500 Hz - 5 kHz, IEC60268-5) |
| Max. SPL | 128 dB (60 W, 1 m) (500 Hz - 5 kHz, IEC60268-5) |
| Frequency Response | 520 Hz - 4.6 kHz (-10 dB), 350 Hz - 11 kHz (-20 dB) |
| Speaker Component | Horn speaker unit x 8 |
| Input Terminal | Ceramic terminal (3-pole), can be bridge-connected x1, Ceramic terminal (2-pole) x1, Thermal fuse included |
| Speaker Cable | 4-core cable type cord 2 m |
| Compatible Wire | For Ceramic terminal (3-pole), conductor: solid wire or 7-core wire |
| IP Code | IP66 |
×
×
