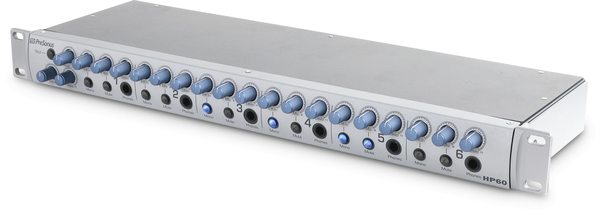

HP60 | 6-CHANNEL HEADPHONE MIXING SYSTEM

HP60
6-CHANNEL HEADPHONE MIXING SYSTEM

Each of the HP60’s six headphone amps has its own level control and is loud enough to drive the alligators out of the Louisiana swamps. And the HP60 lets you customize each mix. In addition to the two pairs of main stereo inputs, you get an external stereo input with level control, mono, and mute for each headphone channel. So you can send each musician a feed of just their instrument or voice and can control the level separately for each.

FEATURES

• - 6 screaming-loud (150 mW/channel) headphone outputs (front panel)
• - 6 unbalanced stereo ¼” line outputs (1 per channel); carries a copy of the channel mix
• - 6 unbalanced stereo ¼” external analog line inputs (1 per channel) for “more me,” with trim controls
• - 4 balanced ¼” analog line inputs (L/R Mix input pairs A and B)
• - 1 balanced XLR Talkback input for external dynamic microphone
• - 1 ¼” footswitch jack for hands-free Talkback operation
• - 2 stereo input channels (A and B)
• - Channel controls
• - External input level
• - Headphone level control for each headphone output
• - Mix A/B control (blends signals from input pairs A and B)
• - Mono switch for external input
• - Mute switch (mutes input pairs A and B)
• - Master controls
• - Input A level
• - Input B level
• - Talk button (momentary switch)
• - Talkback-mic level
• - 1U 19” rack-mountable, rugged steel chassis
• - Internal power supply with standard IEC connector
