MXWAPX4=-Z10 | MXWAPT4 ACCESS POINT TRANSCEIVER FOR USE WITH SHURE MXW NEXT WIRELESS TRANSMITTERS

MXWAPX4=-Z10
MXWAPT4 ACCESS POINT TRANSCEIVER FOR USE WITH SHURE MXW NEXT WIRELESS TRANSMITTERS

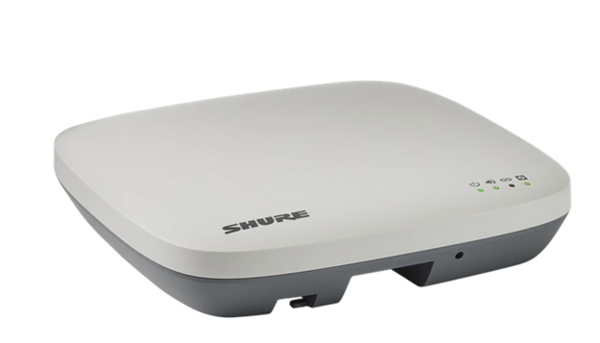

The Shure MXWAPX4 is a discreet, PoE-powered access point transceiver that anchors the Microflex Wireless neXt 4-channel system—ideal for hybrid conferencing, corporate, and educational environments. Designed for seamless ceiling or wall mounting with a paintable cover and included bracket, it operates within the 1.9?GHz DECT band and delivers both audio and system power via a single Ethernet cable (PoE + Dante). Key integrated features include IntelliMix DSP, offering automatic mixing, echo cancellation, noise reduction, automatic gain control, and EQ for clean, intelligible speech. The unit employs Automatic Frequency Management, scanning the spectrum to select clear frequencies and dynamically shifting channels to avoid interference.

• Analog, Dante, and USB-C audio connections.

• Built-in IntelliMix DSP audio processing with automatic mixing, echo cancellation, noise reduction, automatic gain control, and EQ.

• Automatic Frequency Management scans the spectrum, selects a clear channel, and automatically changes channels if interference is expected.

• Power to the unit (via PoE) and Dante digital networked audio are both supplied over a single Ethernet cable to simplify installation.

• Dual RJ45 connection enables 3 network operation modes - Switched, Split, or Redundant.

• The supplied mounting plate and paintable cover allows discreet placement on the ceiling or wall in boardrooms and conference rooms where low visibility is preferred.

• Two-way wireless transmission allows for remote control of audio and transmission of a secondary program audio to each transmitter.

• Multiple units can be combined to support configurations of up to 40 compatible channels and 80 in Europe and select countries (double in HD mode).

• Supports standards-based security protocols to manage access and protect data, including 802.1x, secure boot/storage, and AES encryption for wired and wireless control and audio data.

• Selectable RF output power to allow optimize spectrum usage by selecting the appropriate wireless output power for the desired operating range.

• Diagnostic LEDs offer easy visual reference to system activity and indicate power, wireless connection, and network audio status.

• A CUI can be accessed on a PC connected to the same network enabling access to all device properties for optimization and user specific settings.
