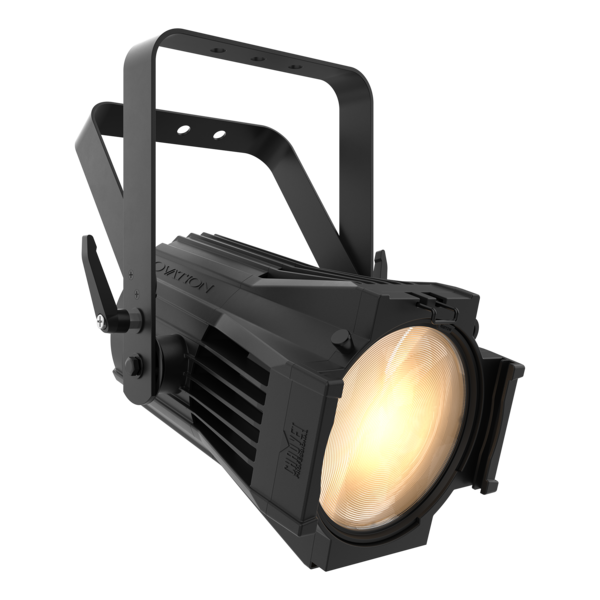

Ovation P-56WW is a bright, compact, and virtually silent par with exceptionally high CRI that is ideal for theatrical and studio applications. The sleek, modern-style par produces a homogenized, single-source, flat and even field of light with the same efficient warm white LED system found in the award-winning Ovation E-260WW ellipsoidal. Interchangeable lens plates are included for narrow, medium and wide beam angles. The virtually silent par also features extremely smooth 16-bit dimming, as well as RDM and PWM for set-up ease. The unit accepts standard 7.5” beam shaping accessories.
Features:
- Delivers powerful output comparable to a conventional 1,000 W PAR 64 lamp.
- Offers superior color accuracy for broadcast applications with an extremely high CRI of 97.9.
- Includes interchangeable lens plates for narrow, medium, and wide beam angles (11.8° to 70.9°).
- Provides four selectable dimming modes for ultra-smooth fades and versatile programming.
- Supports both DMX and RDM protocols for simplified setup and flexible system integration.
- Accepts standard 7.5-inch beam shaping accessories for expanded creative options.
| Light Source | 1 LEDs (WW) 230 W, (3.2 A), 3228 K, 50,000 hours life expectancy |
|---|---|
| Color Temperature (at full) | 3228 K |
| CRI | 97.9 |
| Lumens (w/Narrow lens) | 10,326 |
| Lumens (w/Medium lens) | 10,728 |
| Lumens (w/Wide lens) | 10,687 |
| Selectable PWM | 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz |
| Power Connection | Edison (Local) plug to Seetronic Powerkon IP65 |
| Power Input | Seetronic Powerkon IP65 |
| Power Output | Seetronic Powerkon IP65 |
| Data Connectors | 5-pin XLR |
| Cable Length (power) | 5 ft (1.5 m) |
| Software Connection | USB-C |
| Control Protocol | DMX, RDM |
| DMX Channels | 1, 2, 3 or 6 |
| Modes/Personalities | 4 personalities (1, 2, 3, 6) |
| Certifications | CE, MET, FCC |
| IP Rating | IP20, dry location |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
