ROGUEOUTCAST1BEAMWASH | INCLUDES: POWERCON POWER CORD, 2PCS OMEGA BRACKETS CONTROL: 3-PIN DMX, 5-PIN DMX
ROGUEOUTCAST1BEAMWASH
INCLUDES: POWERCON POWER CORD, 2PCS OMEGA BRACKETS CONTROL: 3-PIN DMX, 5-PIN DMX
ROGUEOUTCAST1BEAMWASH
INCLUDES: POWERCON POWER CORD, 2PCS OMEGA BRACKETS CONTROL: 3-PIN DMX, 5-PIN DMX
- UM : EA
- Estimated Weight: 26.0

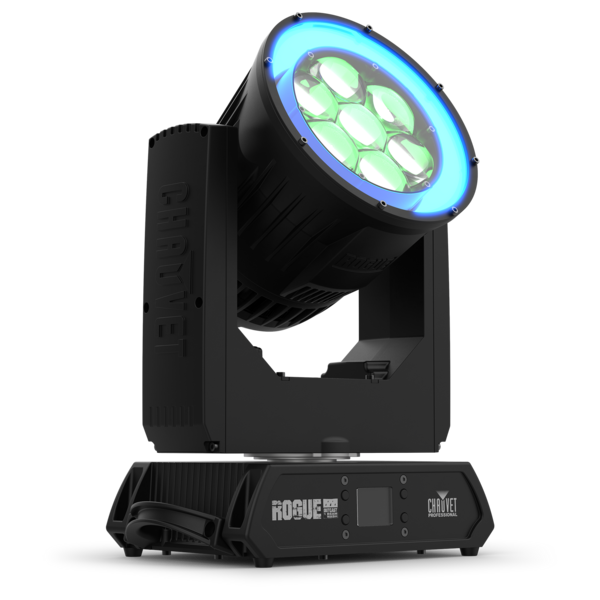

Rogue Outcast 1 BeamWash is a lightweight, IP65 rated, LED Beam & Wash fixture enhanced with a pixel-mappable LED ring around it’s face. A unique lens design developed for tight beam effects allows for a wide zoom range of 3.9° to 55.3° for maximum coverage. Seven 45W RGBW LED’s combine excellent color mixing with a punchy output featuring 16-bit dimming and several dimming modes for advanced control. The outer ring comprises of 12 pixel-mappable RGB LED zones underneath a smoked stealth filter. Easily create eye-catching effects with prebuilt programs for the ring with the ability to control dimming, rate, foreground and background colors. This compact fixture weighs only 20lbs and features a rugged IP65 casing that is proven to withstand all of the harshest elements. Control as you see fit with multiple profiles with simple and advanced control modes compatible with DMX & RDM protocols. Update software easily with an onboard USB-C port.
Features:
- Features seven 45W RGBW LEDs, producing a punchy and vibrant 4,073-lumen output.
- Delivers a wide 3.9° to 55.3° zoom range for flexible beam or wash applications.
- Create dynamic visuals with a 12-zone, pixel-mappable RGB ring under a stealth filter.
- Provides advanced control with 16-bit dimming, six dimming modes, and selectable PWM settings.
- A compact, 20 lb IP65-rated body ensures all-weather reliability for touring and events.
- Offers versatile control via DMX and RDM, plus a USB-C port for easy software updates.
| Field Angle | 5.9° to 49.8° |
|---|---|
| Cutoff Angle | 6.7° to 55.3° |
| Zoom Range | 3.9° to 55.3° |
| Lumens – Source | 5,900 |
| Lumens – Output | 4,073 |
| Selectable PWM | 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz |
| Control Protocol | DMX, RDM |
| DMX Channels | 15, 24, 30, 64, 111 or 135 |
| Modes/Personalities | 6 personalities (15, 24, 30, 64, 111, 135) |
| Power Connection | Edison plug to Seetronic Powerkon IP65 |
| Power Input | Seetronic Powerkon IP65 |
| Power Output | Seetronic Powerkon IP65 |
| Data Connectors | 5-pin XLR |
| Cable Length (power) | 5 ft (1.5 m) |
| Certifications | CE, MET, FCC, UKCA |
| IP Rating | IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
| Maximum Exterior Surface Temperature (Tc) | 80° C / 176° F |
| Maximum Ambient Temperature (ta) | 45° C / 113° F |
