ROGUER1BW | ROGUE R1 BEAMWASH- INCLUDES: POWERCON POWER CORD, 2PCS OMEGA BRACKETS
ROGUER1BW
ROGUE R1 BEAMWASH- INCLUDES: POWERCON POWER CORD, 2PCS OMEGA BRACKETS
ROGUER1BW
ROGUE R1 BEAMWASH- INCLUDES: POWERCON POWER CORD, 2PCS OMEGA BRACKETS
- UM : EA
- Estimated Weight: 17.0

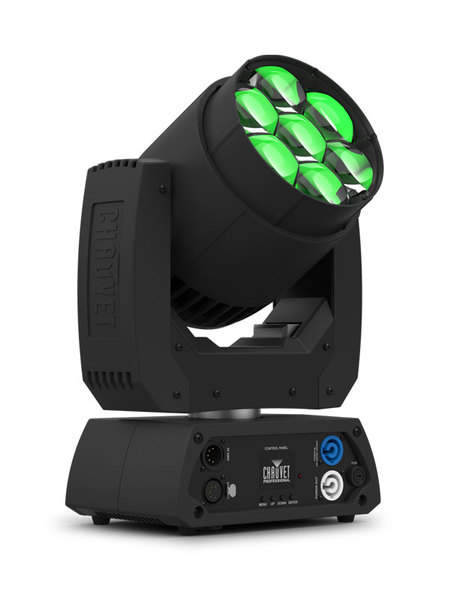

Rogue R1 BeamWash is a versatile and compact moving head that projects a punchy beam and wash. Weighing just under 12 lbs., the unit features a custom-designed optical system with seven, 40W RGBW LEDs and an expansive zoom range of 3.4° to 67.7° that allows for it to project tight, solid beam effects at its most narrow and transforms the light source into a nice even wash with excellent color blending as it expands. The unit’s small size also allows for a superfast and smooth pan and tilt movement. It’s also RDM enabled for remote addressing and is equipped with a selectable PWM setting to maintain flicker free operation on camera.
Features:
- Houses a custom-designed optical system for superior color blending and sharp beam effects.
- Offers a motorized zoom from a tight 3.4° beam to a wide 67.7° wash.
- Delivers exceptionally fast and fluid pan and tilt movement for dynamic lighting displays.
- Includes a user-selectable calibrated white at 7500 K and a tungsten emulation mode.
- Features RDM for remote addressing and flexible DMX channel profiles for versatile programming.
- Provides selectable PWM settings and 16-bit dimming for smooth, flicker-free camera use.
| Light Source | 7 LEDs (quad-color RGBW) 40 W, (980 mA), 50,000 hours life expectancy |
|---|---|
| Color Temperature (range) | 2800 to 10000 K |
| Beam Angle | 4° to 37.8° |
| Field Angle | 5° to 58.2° |
| Cutoff Angle | 5.5° to 67.7° |
| Zoom Range | 3.4° to 67.7° |
| Lumens – Source | 5,400 |
| Lumens – Output | 3,967 Wide |
| Selectable PWM | 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz |
| Power Connection | Edison (Local) plug to Neutrik® powerCON® |
| Power Input | Neutrik® powerCON® |
| Power Output | Neutrik® powerCON® |
| Data Connectors | 5-pin XLR |
| Cable Length (power) | 5 ft (1.5 m) |
| Control Protocol | DMX |
| DMX Channels | 14, 15, 19 or 21 |
| Modes/Personalities | 4 personalities (14, 15, 19, 21) |
| Certifications | CE, MET |
| IP Rating | IP20, dry location |
