ROGUER2XWASHVW | ROGUE R2X WASH VARIABLE WHITE- INCLUDES: POWERCON POWER CORD, 2PCS OMEGA BRACKETS
ROGUER2XWASHVW
ROGUE R2X WASH VARIABLE WHITE- INCLUDES: POWERCON POWER CORD, 2PCS OMEGA BRACKETS
Click image to enlarge
ROGUER2XWASHVW
ROGUE R2X WASH VARIABLE WHITE- INCLUDES: POWERCON POWER CORD, 2PCS OMEGA BRACKETS
- UM : EA
- Estimated Weight: 28.0

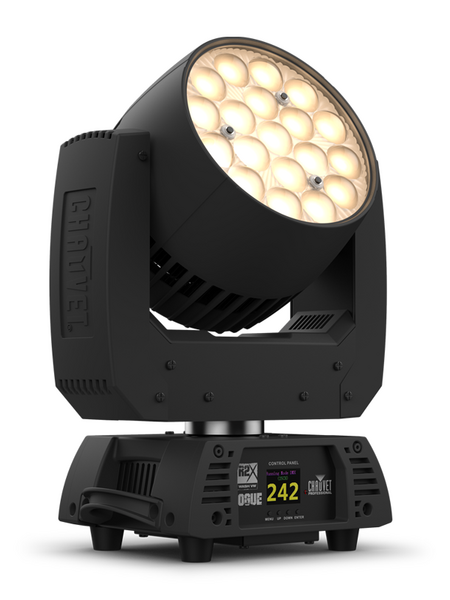

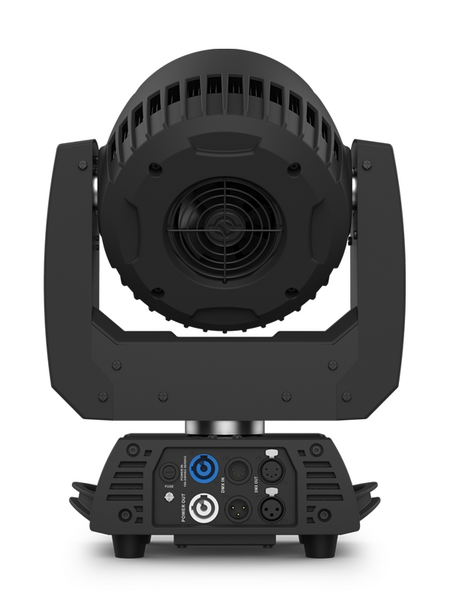

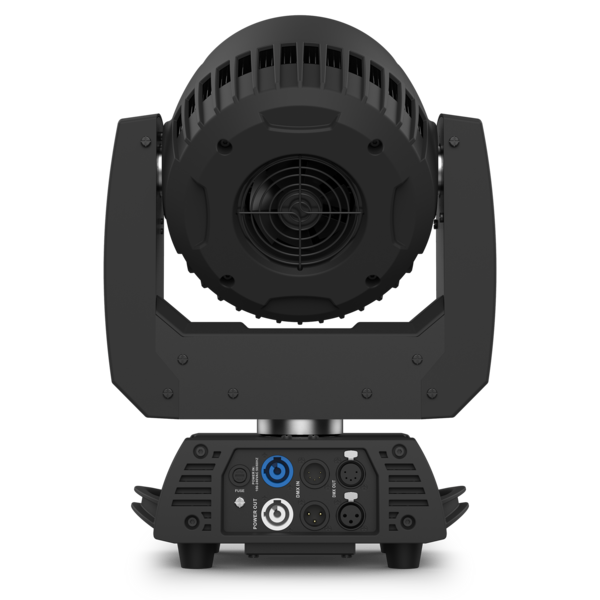

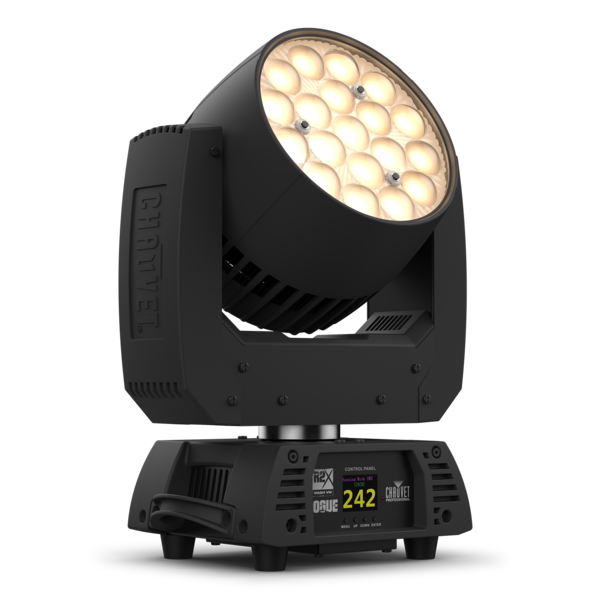

Rogue R2X Wash VW is a versatile wash fixture that produces a full spectrum of white light from 2600 to 6075 K using 19 LEDs, offering five zones of pixel-mapping control and a wide 8.2° to 63° zoom.
Ideal for broadcast and exhibition markets, this unit excels in any application requiring precise control over a wide range of white light temperatures for full area coverage.
Features:
- Houses nineteen powerful 25-watt variable white LEDs for brilliant, high-output illumination.
- Features a unique lens design for superior light blending and a smooth, even wash.
- Provides five zones of independent LED control for creating compelling pixel-mapping effects.
- Achieves exceptionally smooth fades with 16-bit dimming and six selectable dimming curves.
- Supports DMX and RDM protocols for versatile programming and remote fixture management.
- Power link up to 8 units at 230 V to simplify cabling and setup.
| Light Source | 19 LEDs (CW and WW) 25 W, (1.5 A), 50,000 hours life expectancy |
|---|---|
| Color Temperature (range) | 2600 to 6075 K |
| Beam Angle | 8° to 34.4° |
| Field Angle | 11.3° to 50.4° |
| Cutoff Angle | 17.1° to 63° |
| Zoom Range | 8.2° to 63° |
| Lumens – Source | 15,700 lm |
| Lumens – Output | 10,918 lm |
| Selectable PWM | 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz |
| Dimensions | 8.58 x 12.05 x 15.67 in (218 x 306 x 398 mm) |
| Weight | 22.8 lb (10.3 kg) |
| Exterior Color | Black |
| Housing Material | High-impact flame-retardant polymer |
| Control Protocol | DMX, RDM |
| DMX Channels | 15, 18, 23, 34 or 36 |
| Modes/Personalities | 7 personalities (15CH, 18CH, 23CH, 23CH MS, 34CH, 36CH or 36CH MS) |
×
×
