ROGUER3ESPOT | compact/lightweight moving yoke spot,8.4° to 42.8° zoom,350W LED light engine
ROGUER3ESPOT
compact/lightweight moving yoke spot,8.4° to 42.8° zoom,350W LED light engine
ROGUER3ESPOT
compact/lightweight moving yoke spot,8.4° to 42.8° zoom,350W LED light engine
- UM : EA

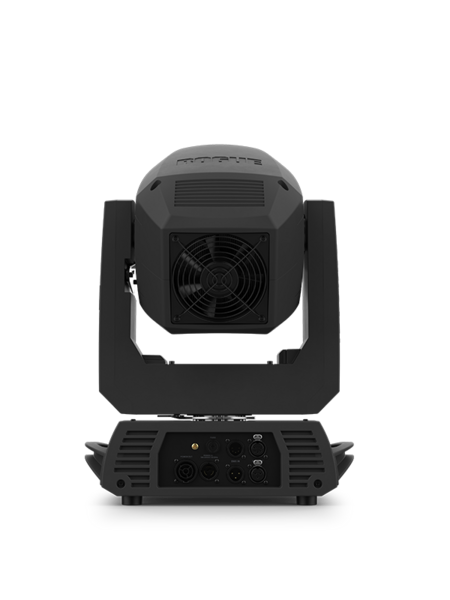

Rogue R3E Spot features an expansive 8.4° to 42.8° zoom in a compact, lightweight moving yoke spot. Its intensely bright 350W LED light engine combines high output with a full effects arsenal: dual gobo wheels (one rotating with interchangeable gobos + one static) for creating custom gobo morphing looks; dual color wheels each with eight brilliant colors + white + split colors; 3-facet rotating prism for stunning aerial effects; and motorized iris and frost for beam shaping. Selectable LED max output settings enable matching brightness with legacy Rogue movers in your rig.
Features:
- A fully featured compact and light weight moving yoke spot fixture with an Intense 350 W LED light engine, two gobo wheels, one rotating, and one static, a 3-facet prism wheel, frost, Zoom and two color wheels.
- 16-bit dimming of master dimmer for smooth control of fades
- Perfect gobo morphing between gobo wheels
- Two color wheels with 8 colors, split color ability, and continuous variable speed scrolling
- Two gobo wheels: one fixed scrolling wheel and one rotating, interchangeable, scrolling wheel
- Iris, 3-facet prism, and frost for beam control
- 8.4° to 42.8° Zoom range
- True 1 compatible power input/output connections for power linking.
- 3- and 5-pin DMX input/output connections
- RDM enabled for remote addressing and trouble shooting.
- Selectable LED maximum output to match legacy Rogue R1X Spots
- Selectable PWM settings to maintain flicker-free operation on camera.
- Simple and complex DMX channel profiles for programming versatility
| Light Source | 1LEDs (CW) 350 W, (5 A), 8527 K, 50,000 hours life expectancy. |
|---|---|
| Front lens diameter | 90mm |
| CRI | 68.2 |
| Beam Angle | 8.4° to 33° |
| Field Angle | 10.1° to 39.3° |
| Cutoff Angle | 11.5° to 42.8° |
| Zoom Range | 8.4° to 42.8° |
| Lumens – Source | 24,500 |
| Lumens – Output | 15,705 |
| Illuminance (7°) | 35,405 lux @ 5 m |
| Illuminance (42.8°) | 2,492 lux @ 5 m |
| Selectable PWM | 600 Hz, 1,200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 15,000 Hz |
| Pan and Tilt | 540°/270° |
| Pan and Tilt Ranges | 180°, 360°, 540° pan/90°, 180°, 270° tilt |
| Colors (1) | 8 + white, split colors, continuous scroll at variable speeds |
| Colors (2) | 8 + white, split colors, continuous scroll at variable speeds |
| Gobos (1) | 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds |
| Gobos (2) | 8 + open (8 metal), continuous scroll at variable speeds |
| Gobo Size | Gobo Wheel 1 (rotating); size: 20 mm (outside), 16 mm (image), 2 mm (max. thickness) |
| Gobo Size | Gobo Wheel 2 (static): size: 24 mm (outside), 16 mm (image), 0.6 mm (max. thickness) |
| Dimmer | Electronic |
| Shutter/Strobe | Electronic |
| Zoom | Motorized |
| Focus | Motorized |
| Frost | Motorized |
| Iris | Motorized |
| Prism | 3 Facets, motorized, rotating |
| Strobe Rate | 0 to 25 Hz |
| Move in Black | Yes |
| Dimensions | 13.77 x 9.44 x 23.03 in (350 x 240 x 585 mm) |
| Weight | 34 lb (15.4 kg) |
| Exterior Color | Black |
| Housing Material | Aluminum die-cast, High-impact flame-retardant polymer, Steel |
| Software update | USB-C |
| Power Connection | Edison (local) plug to Seetronic Powerkon IP65 |
| Power Input | Seetronic Powerkon IP65 |
| Power Output | Seetronic Powerkon IP65 |
| Data Connectors | 3- and 5-pin XLR |
| Cable Length (power) | 5 ft (1.5 m) |
| Software Connection | USB-C |
| Control Protocol | DMX, RDM |
| DMX Channels | 19 or 25 |
| Modes/Personalities | 2 personalities (19, 25) |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power Linking | 4 units @ 120 V; 8 units @ 208 V; 8units @ 230 V; 9 units @ 240 V |
| Power and Current | 535 W, 4.541 A @ 120 V, 60 |
| Power and Current | 522 W, 2.576 A @ 208 V, 60 Hz |
| Power and Current | 523 W, 2.345 A @ 230 V, 50 Hz |
| IP Rating | IP20, dry location |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
