TH118XL-T-EDM | 18" LONG EXCURSION TAPPED HORN SUBWOOFER, PASSIVE TOURING VERSION
TH118XL-T-EDM
18" LONG EXCURSION TAPPED HORN SUBWOOFER, PASSIVE TOURING VERSION
TH118XL-T-EDM
18" LONG EXCURSION TAPPED HORN SUBWOOFER, PASSIVE TOURING VERSION
- UM : EA

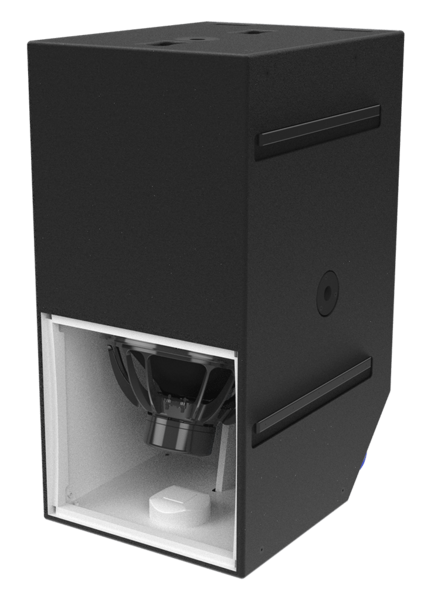

The TH118XL-T-EDM is a tapped horn subwoofer designed for both indoor and outdoor applications. It features a tapped horn enclosure that increases the driver's acoustic output by effectively doubling it, resulting in higher sound pressure levels with lower input power. This subwoofer is equipped with a high-power handling driver, enabling it to deliver extended low-frequency performance.
The cabinet includes interlocking skids on the top and bottom, facilitating stable stacking with additional TH118XL-T-EDM units or SH96/96HO models to increase output capacity. The design allows the TH118XL to replace two standard 2×18-inch front-loaded subwoofer cabinets, reducing system size, cost, and amplifier requirements for a given output level.
| Operating Frequency Range | 35 Hz – 150 Hz |
|---|---|
| Continuous Output | 134 dB SPL |
| Peak Output | 140 dB SPL |
| Sensitivity | 105 dB SPL (2.83 V at 1 m, half space) |
| Driver Complement | one 18" long excursion woofer |
| Rated Impedance | 4ohms |
| Power Rating | 1700 W continuous |
