VAN-EVSW1042 | HDMI 4X1 SELECTOR SWITCH 4K/60HZ HDR HDCP 2.2, IR ROUTING
VAN-EVSW1042
HDMI 4X1 SELECTOR SWITCH 4K/60HZ HDR HDCP 2.2, IR ROUTING
VAN-EVSW1042
HDMI 4X1 SELECTOR SWITCH 4K/60HZ HDR HDCP 2.2, IR ROUTING
- UM : EA

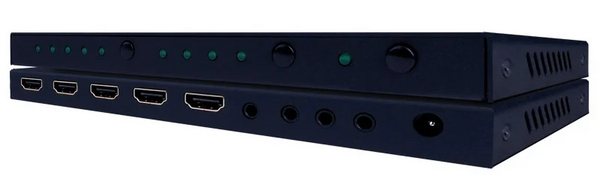

The Vanco Evolution EVSW1042 is a 4×1 HDMI® switch that supports 4K@60Hz (4:4:4) resolution, HDR formats including HDR10, Dolby Vision, and HLG, and ARC (Audio Return Channel) for simplified audio connectivity. Ideal for residential and commercial AV installations, this HDMI switch allows seamless switching between four HDMI sources to a single HDMI display with included IR remote and front panel control. It supports HDMI 2.0b, HDCP 2.2, and advanced audio formats including Dolby TrueHD, DTS-HD Master Audio, and LPCM 7.1. With its compact design and reliable performance, the EVSW1042 is a flexible solution for high-resolution home theaters, conference rooms, or digital signage systems.
- Supports 4K2K (2160p @60Hz w/ 4:4:4 color sampling) Ultra High Definition Resolutions
- Supports HDR (High Dynamic Range)
- Features Audio EDID management which allows selection of preferred audio channel
- Supports auto switching or manual switching mode
- IR pass-through for source control with included IR accessories
- Controllable via RS-232 and/or IR
- Supports ARC (Audio Return Channel) and CEC (Consumer Electronic Control) functionality
- Supports PCM- Dolby TrueHD- and DTS-HD Master Audio up to 7.1 CH audio formats
- Digital and analog audio outputs for audio extraction
- HDCP 2.2 compliant
- 5V DC Power Supply
- Dimensions: 7” W x .5” H x 3.3” D
Product Contents:
EVSW1042 4×1 HDMI Switcher
5V/1A USB Power Adapter
5V USB to DC Power Supply cable
IR Receiver
(4) IR Transmitters
3.5mm Stereo (male) to 4- 3.5mm Stereo (Female) for IR OUT (WIR-1X4)
Optical convert adapter (for SPDIF audio output)
IR Remote
Product Manual
