WB98H/C | BETA 98H/C CLIP-ON CONDENSER INSTRUMENT MICROPHONE TERMINATED TO 4-PIN MINI-CONNECTOR (TA4F)

  • MAP: $186.00 / EA
  • List Price: $241.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 20
  • Sign In or Submit RFQ for accurate lead times
BETA 98H/C CLIP-ON CONDENSER INSTRUMENT MICROPHONE TERMINATED TO 4-PIN MINI-CONNECTOR (TA4F)
Click image to enlarge

WB98H/C
BETA 98H/C CLIP-ON CONDENSER INSTRUMENT MICROPHONE TERMINATED TO 4-PIN MINI-CONNECTOR (TA4F)

  • UM : EA
  • Estimated Weight: 1.0

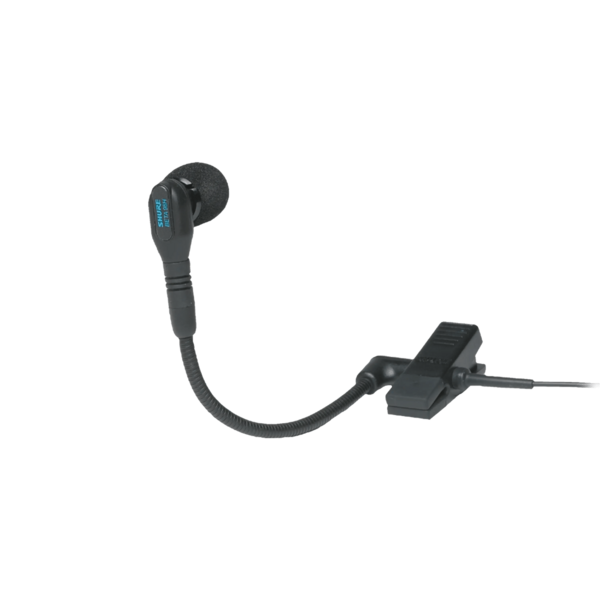

The Shure WB98H/C (the wireless version of the BETA®98H/C) is a premium cardioid condenser instrumental microphone that clamps onto the bell of wind instruments or onto the rim of percussion instruments. The integrated gooseneck and ratcheting swivel joint allows the microphone to be easily positioned and secured in place, and an isolation shock-mount reduces the transmission of instrument 'key noise' and other mechanical noise. A gooseneck angle brace is included to provide better retention of the microphone placement during more active performances.

Features:

  • The WB98H/C features transformerless preamplifier circuitry, which improves linearity across the full frequency range.
  • The pickup pattern of the Beta 98H/C provides high gain-before-feedback and excellent rejection of unwanted noise.
  • Its high maximum sound pressure level (SPL) enables it to handle the extreme demands of brass, woodwind and percussion instruments.
  • Tailored frequency response for studio quality performance
  • Wide dynamic range for use in high SPL environments
  • Uniform cardioid pattern for high gain before feedback and superior rejection of off-axis sound
  • Compact design reduces stage clutter
  • Interchangeable microphone cartridges with different polar patterns are available
  • Legendary Shure quality, ruggedness, and reliability
Weight (g) / (lbs)65 g / 0.143 lbs
Transducer TypeCondenser
Polar PatternCardioid
Frequency Range From (Hz)20
Frequency Range To (kHz)20
Sensitivity dBV/Pa-56.00
Sensitivity mvpa1.60
Equivalent Selfnoise31 dB(A)
Maximum Sound Pressure155 dB (@ 1 kΩ)
163 dB (@ 2,5 kΩ)
Impedance (Ω)150
Switchable Low Cutno
Output ConnectorsTQG (TA4F, 4-Pin Mini)
Attenuation PADno
Interchangeable Capsuleyes
Cable1.6 m / 5.3 ft
