AC26 | COMPACT 2-WAY LOUDSPEAKER WITH 2 X 6.5" LF. 90° X 90° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE
AC26
COMPACT 2-WAY LOUDSPEAKER WITH 2 X 6.5" LF. 90° X 90° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE
AC26
COMPACT 2-WAY LOUDSPEAKER WITH 2 X 6.5" LF. 90° X 90° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE
- UM : EA

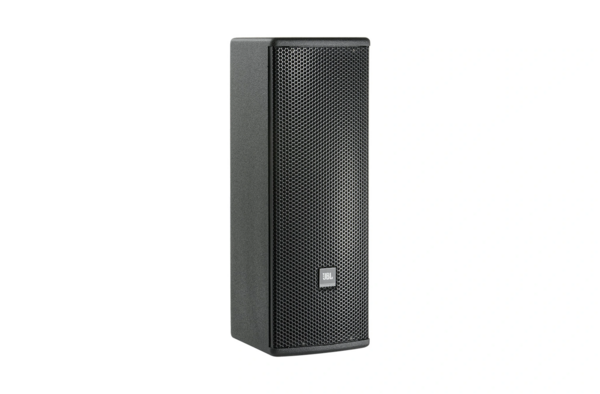

The JBL AC26 is an ultra compact 6" two-way loudspeaker from the JBL AE Compact Series, designed for installed sound systems that need professional output, clean coverage, and flexible mounting in a smaller cabinet. With dual 6.5" low-frequency drivers, a 1" exit compression driver, 90° x 90° coverage, and a compact enclosure, the AC26 is a strong choice for performance spaces, auditoriums, theaters, worship facilities, clubs, sports venues, themed entertainment spaces, and commercial AV systems where high-quality point-source audio needs to fit into tighter architectural spaces.
The AC26 works well for foreground music, speech reinforcement, under-balcony fill, delay zones, distributed performance audio, and compact main speaker applications where designers need clear vocal intelligibility and dependable full-range sound without using a large-format cabinet. With 8 ohm operation, high SPL capability, NL4 and screw terminal connections, multiple suspension points, and compatibility with optional U-brackets, OmniMount-type brackets, and stand mount accessories, this JBL loudspeaker gives integrators a flexible installation platform for professional venue audio and installed sound reinforcement systems.

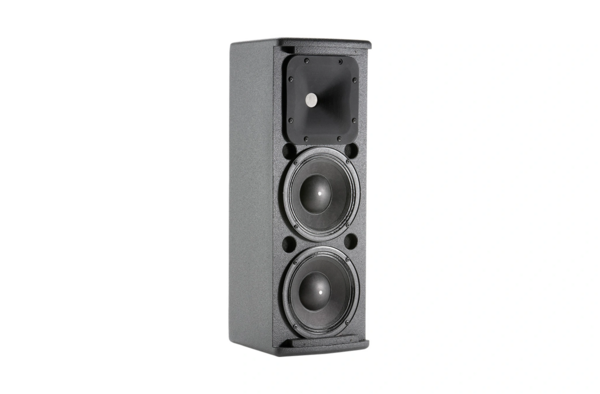

- 1” Exit Compression Driver with 90° x 90° Coverage PT™ Waveguide
- 165 mm (6.5 in) LF transducer
- Ultra compact enclosure
- 360W Program power
- Dual Neutrik NL4 connectors plus screw terminal
- Attachment points for optional U-bracket, OmniMount® type bracket, and stand mount accessory
Use Options
· Performing Arts Facilities
· Theatrical Sound Design
· Auditoriums
· Worship Facilities
· Live Clubs
· Dance Clubs
· Sports Facilities
· Themed Entertainment Venues
| Frequency Range | 55 Hz - 20 kHz |
|---|---|
| Frequency Response | 70 Hz - 18 kHz |
| System Power Rating | 350 W (AES), 180 W / 360 W / 720 W (Continuous/Program/Peak) IEC |
| Impedance | 8 ohms |
| Coverage Pattern | 90° x 90° |
| Maximum SPL | 117 dB |
| System Sensitivity | 92 dB SPL (1w @ 1m) |
| LF Driver | 2 x JBL 226J, 165 mm SFG driver with 50 mm edge wound voice coil |
| Nominal LF Driver Impedance | 8 ohms |
| HF Driver | 1 x 2414H, 25 mm exit compression driver, 25 mm voice coil |
| Enclosure | 12 mm and 15 mm exterior grade multi-ply hardwood plywood |
| Suspension Attachment | 6 x M8 points; 1 top, 3 bottom, 2 rear; 4 x M6 rear for OmniMount or MultiMount |
| Environmental | Mil-Std 810; IPx3 per IEC529; use WRC or WRX for higher ratings |
