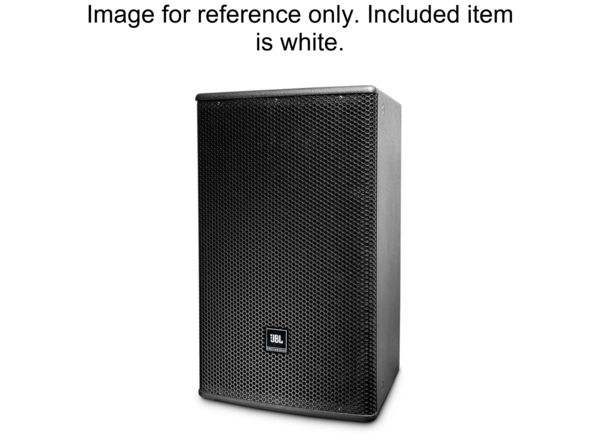

AC299-WH | 12" 2-WAY SYSTEM, 90 X 90 WAVEGUIDE COVERAGE PATTERN WITH 2408H-2 25MM (1 IN) EXIT,

  • MAP: $1,400.00 / EA
  • List Price: $1,400.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times

AC299-WH
12" 2-WAY SYSTEM, 90 X 90 WAVEGUIDE COVERAGE PATTERN WITH 2408H-2 25MM (1 IN) EXIT,

  • UM : EA

The AC299-WH is a 12-inch 2-way full-range loudspeaker system consisting of a 310 mm (12 in) low-frequency driver and a 25 mm (1 in) exit, 35 mm (1.5 in) voice-coil compression driver. The horn provides a 90° by 90° coverage pattern in both vertical and horizontal planes. The system uses high-slope passive crossovers to reduce band overlap and maintain controlled off-axis response. The cabinet includes M10 threaded suspension points and four threaded inserts on the back panel for mounting using a MultiMount or similar hardware.

  • 15mm robust black textured enclosure
  • 310mm (12in) LF transducer
  • 90° x 90° waveguide with 25mm (1in) exit
  • 35mm (1.5in) voice-coil compression driver
  • Dual Neutrik NL4 connectors and screw terminals
  • Multiple attachment points
Frequency Range 63 Hz - 20 kHz
Frequency Response 80 Hz - 18 kHz
System Sensitivity 97 dB (1W @ 1m)
Nominal Impedance 8 ohms
Maximum SPL 121 dB (127 dB peak, 1m)
System Power Rating 350W (1400W peak), 2 hrs (AES rated), 250W/500W/1000W (Continuous/Program/Peak) (IEC rated)
Coverage Pattern 90° x 90° (H x V)
Crossover Frequency 1.5 kHz
LF Driver 1 x 12" woofer with 66 mm voice-coil
HF Driver 1 x 2408H-2 driver with 25 mm exit, 35 mm voice-coil
Input Connector Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure 15 mm multi-ply hardwood plywood
Grille Powder coated, 1.5 mm perforated steel with acoustically transparent black foam backing
Finish Textured white paint finish
Suspension Attachment 14 x M10 and 4 x M10 for Wall Mount Bracket; optional U-bracket, L-bracket, and wall-mount bracket
Crossover Modes Passive
Nominal LF Driver Impedance 8 ohms
Nominal HF Driver Impedance 8 ohms
