AH-DLIVE-CDM32 | DLIVE C CLASS MIXRACK 32X16 I/O, 128 X 64 FPGA, 1 OPTION I/O, ME-1 PORT, DX EXPANDER LINK

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
DLIVE C CLASS MIXRACK 32X16 I/O, 128 X 64 FPGA, 1 OPTION I/O, ME-1 PORT, DX EXPANDER LINK
DLIVE C CLASS MIXRACK 32X16 I/O, 128 X 64 FPGA, 1 OPTION I/O, ME-1 PORT, DX EXPANDER LINK

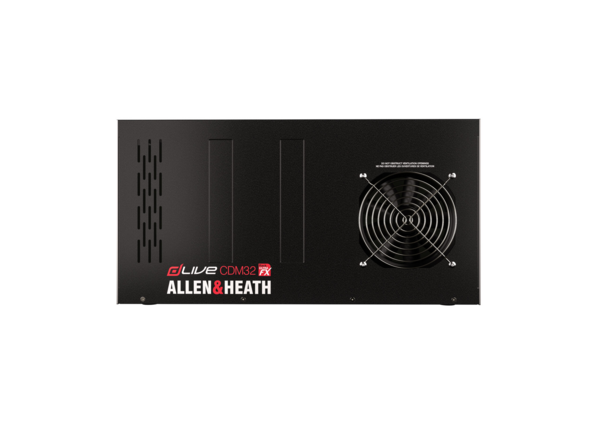

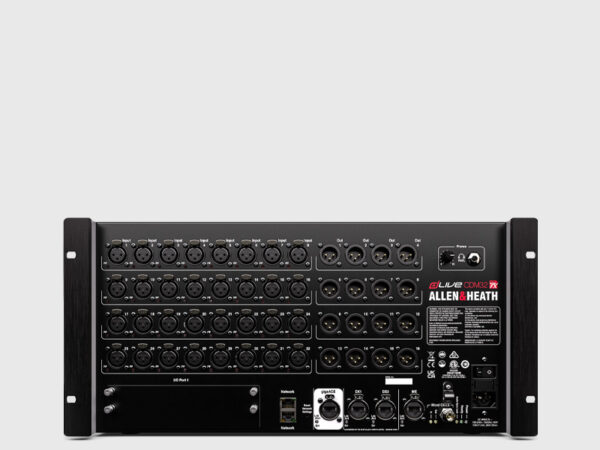

Click image to enlarge
DLIVE C CLASS MIXRACK 32X16 I/O, 128 X 64 FPGA, 1 OPTION I/O, ME-1 PORT, DX EXPANDER LINK
DLIVE C CLASS MIXRACK 32X16 I/O, 128 X 64 FPGA, 1 OPTION I/O, ME-1 PORT, DX EXPANDER LINK

AH-DLIVE-CDM32
DLIVE C CLASS MIXRACK 32X16 I/O, 128 X 64 FPGA, 1 OPTION I/O, ME-1 PORT, DX EXPANDER LINK

  • UM : EA

The AH-DLIVE-CDM32 incorporates the dLive MixRacks' mix engine, supporting 128 input channels and 64 mix outputs within a configurable 64-bus architecture. It operates with a latency of 0.7 milliseconds and maintains phase-aligned signal paths.

Features:

  • 32 mic/line inputs
  • 16 line outputs
  • 1x I/O Port
  • XCVI 160×64 FPGA core
  • 128 Input Channels with full processing
  • 64 Mix Outputs with full processing
  • Configurable 64-bus architecture (group, FX, aux, matrix, mains)
  • 8 RackUltra FX with dedicated stereo sends, returns and pre/post processing
  • 16 RackExtra FX with dedicated stereo returns
  • 24 DCAs
  • AMM (Automatic Mic Mixer) up to 64 channels across 1, 2 or 4 zones
  • Built-in signal generator and RTA
  • New preamp design for extra transparency
  • Unique Active PAD circuit for consistent performance with any source
  • Reversible rack ears design
  • Flush front panel with ultra-quiet fan
