C-T4BT | ATMOSPHERE DSP TOUCHSCREEN WALL CONTROLLER WITH BLUETOOTH AUDIO INPUT / WHITE, 2-GANG

C-T4BT
ATMOSPHERE DSP TOUCHSCREEN WALL CONTROLLER WITH BLUETOOTH AUDIO INPUT / WHITE, 2-GANG

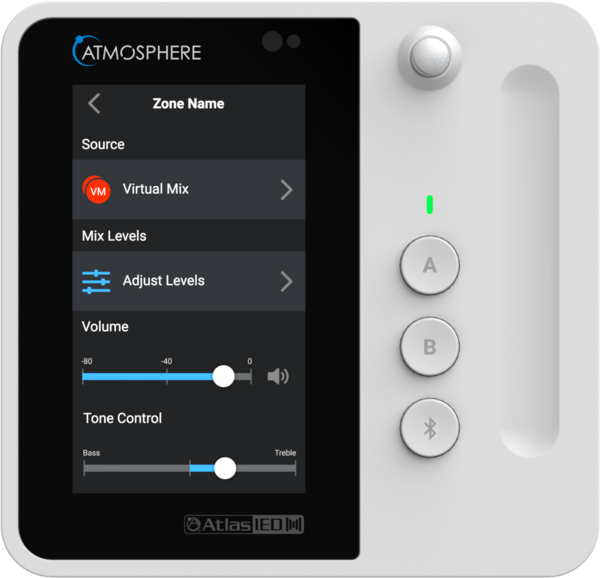

The AtlasIED C-T4BT is an Atmosphere™ wall controller with built-in Bluetooth audio input, designed for commercial audio systems using AtlasIED Atmosphere AZM or AZMP processors. It gives end users an easy, polished control point for managing zones, sources, system actions, and local Bluetooth audio from a wall-mounted touchscreen interface. The C-T4BT is a strong fit for restaurants, bars, hospitality spaces, offices, education facilities, corporate centers, houses of worship, meeting rooms, and other commercial environments where users need simple local control plus convenient wireless audio input. It features a 4.3" programmable touchscreen, capacitive touch volume slider, programmable action buttons, PIR motion sensor, automatic LCD brightness, plug-and-play connection to Atmosphere processors, CAT5e connectivity, daisy-chain support up to 1,000 feet, and a standard 2-gang design for clean installation. The C-T4BT sends stereo or mono Bluetooth audio into the Atmosphere system, uses Bluetooth V4.2 with A2DP audio profile, supports up to 100 ft open-air range, and is compatible with Atmosphere AZM/AZMP processors running software V4.5 or greater.

·         4.3" Programmable Touchscreen: Customizable interface for streamlined control of zones, sources, and actions.

·         Capacitive Touch Volume Slider: Smooth, intuitive volume adjustment for precise audio control.

·         Programmable Action Buttons: Quick-access buttons for easy execution of preset commands or configurations.

·         PIR Motion Sensor: Automatically trigger actions or behaviors on the AZM processor based on motion detection.

·         Automatic LCD Brightness: Adjust LCD brightness automatically based on ambient lighting conditions.

·         Plug-and-Play Integration: Effortlessly connects to Atmosphere AZM head-end processors for seamless system operation.

·         Daisy-Chain Connectivity: Supports up to 1,000 feet of daisy-chaining for flexible installation across larger spaces. Up to 1x audio input accessory, such as the C-T4BT, can be added to each AZM accessory port.

·         Standard 2-Gang Design: Easy to install in a wide variety of commercial environments.

·         Bluetooth™ Audio Input: Send stereo or mono audio to the Atmosphere system from virtually any Bluetooth-enabled device
