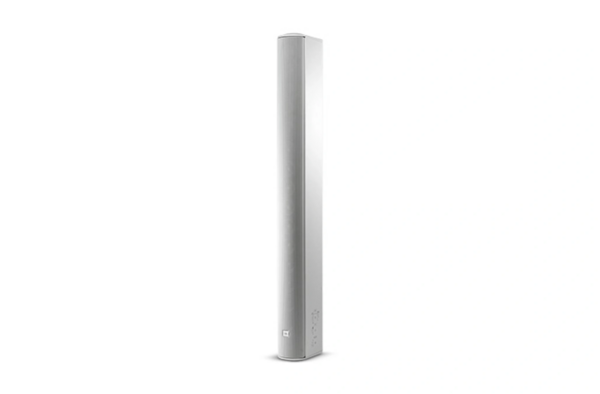

CBT 100LA-1-WH | STRAIGHT LINE ARRAY COLUMN WITH 16 X 2” DRIVERS & CONSTANT BEAMWIDTH TECHNOLOGY - WHITE

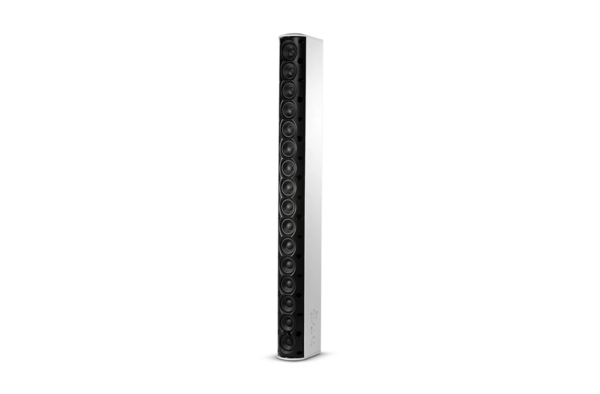

The CBT 100LA-1 Line Array Column Loudspeaker features Constant Beamwidth Technology and incorporates sixteen 50 mm (2 in) drivers. It employs complex analog delay beam-forming and amplitude tapering to achieve consistent vertical coverage across the listening area. The design minimizes narrow vertical beaming and out-of-coverage lobing commonly observed in straight form-factor column speakers. The unit includes an improved mounting bracket that allows for enhanced aiming flexibility during installation.

• Constant Beamwidth Technology provides constant directivity and reduces out-of-coverage lobing
• Vertical pattern coverage switchable between 40° and 15°
• Switchable voicing for flat response in music mode or mid-range presence peak in speech mode
• Dynamic SonicGuard overload protection
• Included swivel (pan)/tilt wall bracket
• Built-in 70V/100V transformer and 8 ohm direct capability

Drivers	Sixteen 50 mm (2 in) Full-Range
Frequency Range	80 Hz – 20 kHz
Coverage Angle Vertical	Switchable, Narrow Mode: 15°, Broad Mode: 40°; Horizontal: 150°
Sensitivity Narrow (speech mode)	96 dB (2 kHz - 14 kHz), music mode: 93 dB (300 Hz - 18 kHz); Broad (speech mode): 93 dB (2 kHz - 14 kHz), music mode: 90 dB (300 Hz - 18 kHz)
Impedance	8 ohms (in through mode)
Power Rating	325 W (1300W peak, 2 hrs), 200 W (800W peak, 100 hrs)
Maximum SPL (1m) Narrow (speech mode)	121 dB cont ave (127 peak), music mode: 118 dB cont ave (124 peak); Broad (speech mode): 118 dB cont ave (124 peak), music mode: 115 dB cont ave (121 peak)
Transformer Taps	120W, 60W, 30W (15W at 70V only), and 8 ohm through, via switch
Enclosure	Fiberglass reinforced ABS cabinet, painted aluminum baffle
Outdoor Capability	IP-55 rated per IEC529 with optional MTC-PC2 panel cover; UV, moisture, and 200-hr ASTM G85 acid-air/salt-spray resistant
