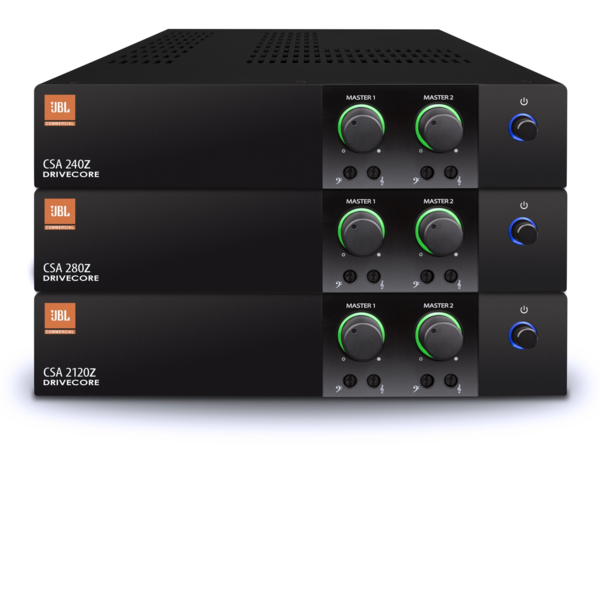

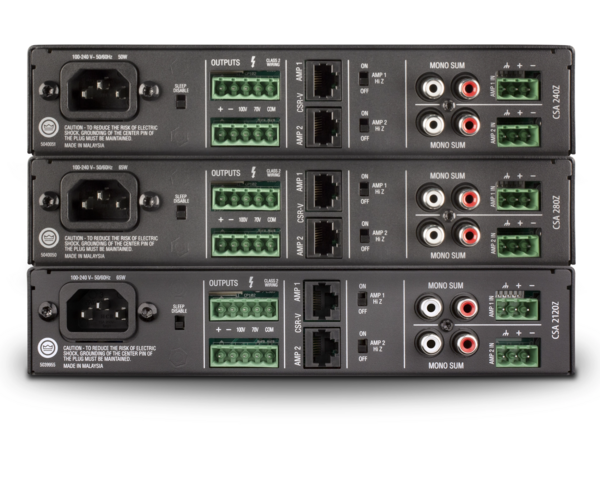

CSA2120Z | 2CH 120W POWER AMPLIFIER, FANLESS, 4OHM/8OHM/70V/100V, 1RU HALF-RACK, MOUNTING KIT

The JBL Commercial Series Amplifiers (CSA) integrate Crown’s DriveCore Technology with a switch-mode universal power supply to deliver amplified audio output. The DriveCore technology consolidates multiple components into a single chip, reducing part count and enhancing system reliability. These amplifiers are compatible with both 70V and 100V distributed audio systems and feature RJ45 connectors for integration with JBL CSR-V in-wall volume controls. The universal power supply supports AC input voltages ranging from 100 to 240 V at 50/60 Hz frequency. The design also incorporates energy-efficient features aligned with HARMAN's GreenEdge initiative.

• 1 or 2 output channels with 40W, 80W, 120W per channel
• Built-in 70V and 100V
• Fanless 1U design
• Sleep mode disable function
• Energy-efficient amplifier
• Supports JBL CSR-V wall controller via CAT5 cable with RJ45 connectors
• Universal power supply
• Energy Star Certified

Power Output	40W/80W/120W
Output Channels	2
Input Sensitivity	1.4 Vrms for 8 ohms
Phantom Power	27 VDC
AC Line Voltage	100-240 V, 50/60 Hz
Input Impedance	20K ohms / 50K ohms
Included Accessories	Rack mounting kit
