CSS8018 | 8" COMMERCIAL SERIES CEILING SPEAKER. VERY HIGH 97 DB SENS, 10W MULTI-TAP FOR 100V/70V 25V,
CSS8018
8" COMMERCIAL SERIES CEILING SPEAKER. VERY HIGH 97 DB SENS, 10W MULTI-TAP FOR 100V/70V 25V,
CSS8018
8" COMMERCIAL SERIES CEILING SPEAKER. VERY HIGH 97 DB SENS, 10W MULTI-TAP FOR 100V/70V 25V,
- UM : EA
- Estimated Weight: 5.0

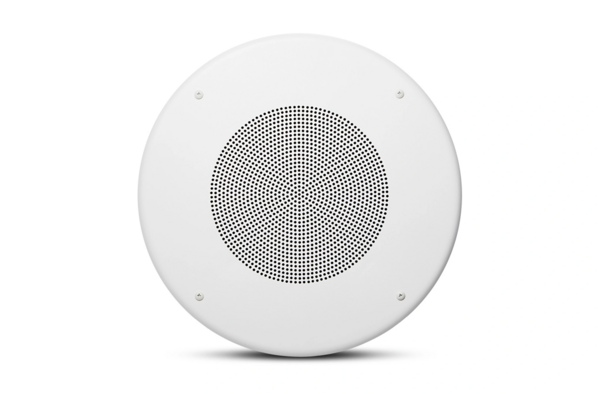

The 200 mm (8 inch) Commercial Series Ceiling Speakers by JBL are designed for ceiling installation in commercial environments. These speakers feature high sensitivity to deliver effective sound output suitable for paging and background music applications. The design supports consistent audio performance across the product line, maintaining sound level even at low input tap settings.
- 97 dB sensitivity
- 10 Watt multi-tap transformer for 100V, 70V, and 25V lines

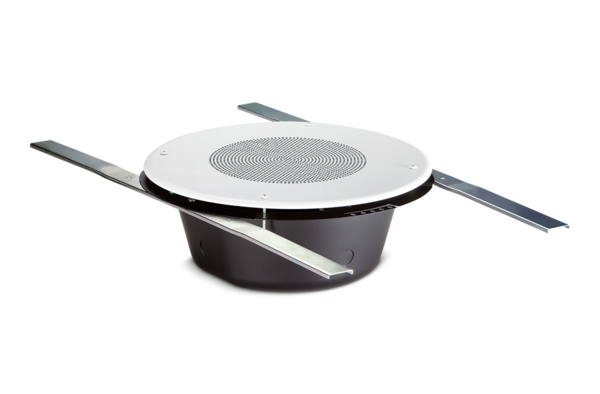

- Fits CSS-BB8 backcan
| Driver | 200 mm full-range |
|---|---|
| Sensitivity | 97 dB (2k - 6k Hz) |
| Frequency Range | 50 Hz – 17 kHz |
| Coverage Angle | 110° conical |
| Power Handling | 20 W continuous |
| Transformer Taps | 10W, 5W, 2.5W, 1.3W |
| Transformer Insertion Loss | 1.5 dB max |
| Safety | UL1480, UL2043, NFPA 90, NFPA 70 compliant; UL listed transformer |
| Maximum SPL (1m) | 103 dB |
| Input Connectors | Bare wire |
