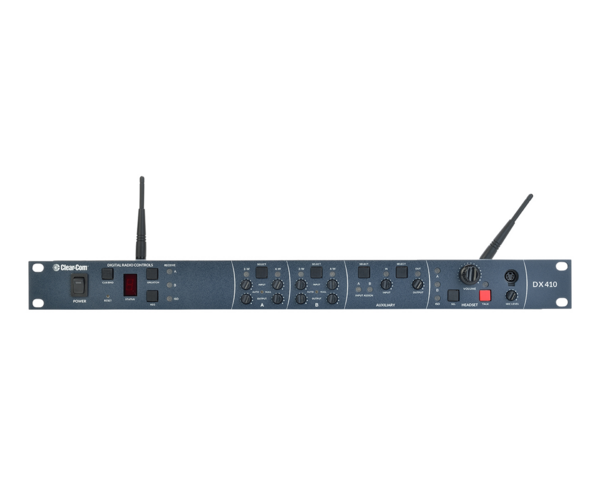

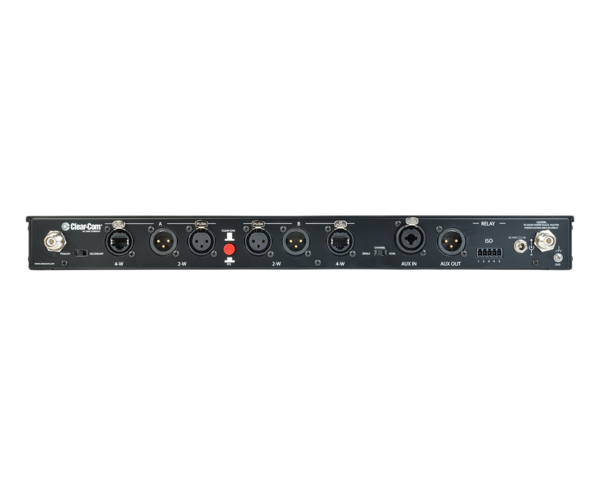

CZ-BS410 | BS410 BASE STATION: DX410 WIDEBAND 7KHZ, 2 CHANNEL BASE STATION W/2 ANTENNAS.
CZ-BS410
BS410 BASE STATION: DX410 WIDEBAND 7KHZ, 2 CHANNEL BASE STATION W/2 ANTENNAS.
CZ-BS410
BS410 BASE STATION: DX410 WIDEBAND 7KHZ, 2 CHANNEL BASE STATION W/2 ANTENNAS.
- UM : EA
The CZ-BS410 is the base station for the DX410 wireless communication system, designed to operate with BP410 wireless beltpacks. It supports up to 15 registered BP410 beltpacks and/or WH410 wireless headsets.
The device features two-wire auto-nulling, facilitating integration with Clear-Com and RTS wired partyline systems by enabling fast and accurate connection.
Features:
- 2 channels of communication
- 2.4 ghz license-free operation
- Supports up to 15 beltpacks
- 7 khz wideband audio
- 2-wire and 4-wire bridging
- 2-wire auto-nulling
- Lost packet concealment
- Simple setup and configuration
| Channels | 2 audio channels |
|---|---|
| Capacity | Up to 15 bp410 and/or wh410 per base station |
| Full-duplex | Yes. single-channel = 4 in simultaneous full-duplex. dual-channel = 3 in simultaneous full-duplex. |
| Audio frequency | 200 hz – 7khz |
| 4-wire i/o | Rj45, 600 ohms balanced, level adjustable, simultaneous operation with 2-wire |
| 2-wire i/o | Xlr-3m, xlr-3f, externally-switchable rts or clear-com, 200?, level adjustable, null adjustable to 50db attenuation, typical |
| Aux input | Xlr-3f with ¼” (6.35mm) combo jack, 600? balanced, level adjustable |
| Aux output | Xlr-3m, 600? balanced, level adjustable |
| Headset connector | 4-pin mini-din, electret microphone |
| Headset output | 200mw into 32? |
