CZ-MB340ES | MB340ES BASE STATION:DUAL HEADSET POSITION BASE STATION WITH WIDEBAND 7KHZ L WW MODEL

  • MAP: $4,300.00 / EA
  • List Price: $4,300.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
MB340ES BASE STATION:DUAL HEADSET POSITION BASE STATION WITH WIDEBAND 7KHZ L WW MODEL
MB340ES BASE STATION:DUAL HEADSET POSITION BASE STATION WITH WIDEBAND 7KHZ L WW MODEL
MB340ES BASE STATION:DUAL HEADSET POSITION BASE STATION WITH WIDEBAND 7KHZ L WW MODEL
MB340ES BASE STATION:DUAL HEADSET POSITION BASE STATION WITH WIDEBAND 7KHZ L WW MODEL
Click image to enlarge
MB340ES BASE STATION:DUAL HEADSET POSITION BASE STATION WITH WIDEBAND 7KHZ L WW MODEL
MB340ES BASE STATION:DUAL HEADSET POSITION BASE STATION WITH WIDEBAND 7KHZ L WW MODEL
MB340ES BASE STATION:DUAL HEADSET POSITION BASE STATION WITH WIDEBAND 7KHZ L WW MODEL
MB340ES BASE STATION:DUAL HEADSET POSITION BASE STATION WITH WIDEBAND 7KHZ L WW MODEL

CZ-MB340ES
MB340ES BASE STATION:DUAL HEADSET POSITION BASE STATION WITH WIDEBAND 7KHZ L WW MODEL

  • UM : EA

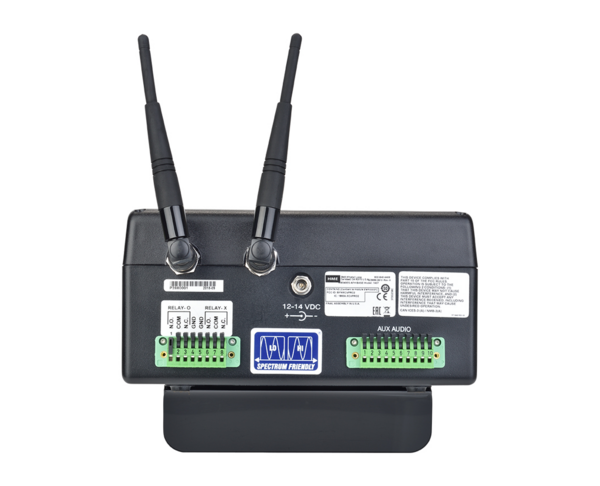

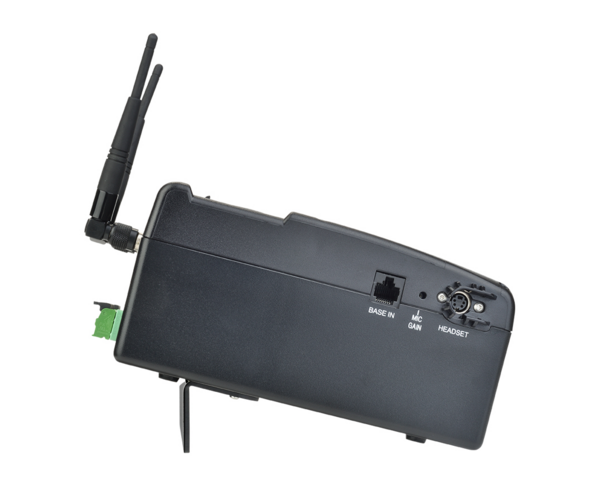

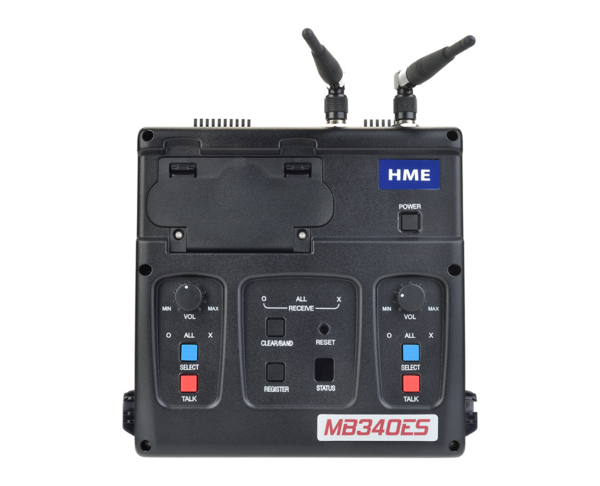

The CZ-MB340ES base station is designed for the DX340ES digital wireless system. It supports hands-free, two-way digital communication and provides interfaces for two channels of external tuner or intercom connections. The unit features a compact form factor to facilitate portability and rapid setup.

Features:

  • Up to 4 full-duplex or 15 half-duplex users per base station
  • Link two bases to support 30 users
  • Single or dual-channel operation
  • 7khz wideband audio
  • Lost packet concealment
  • Improved rf filtering compared to dx300es
  • Secure 64-bit encryption
  • Dedicated channel relays
  • 10-pin terminal strip connector for 4-wire intercom
  • Triple diversity operation (space, time, frequency)
  • No frequency coordination or licensing required
  • Power via 100-240 VAC, 12-14 VDC, 1.5V “AA” batteries or an optional rechargeable BAT850 battery
Frequency rangeAll (2400 – 2483.5mhz), low (2401.92 to 2439.936mhz) or high band (2443.392 to 2481.408mhz)
Frequency response200hz to 7khz
Security64-bit encryption
Temperature range-4 to 131°f (-20 to 55°c) typical
Transmit/receiveFrequency-hopping, spread spectrum (fhss)
Transmit power100mw burst
Modulation typeGaussian filtered fsk, tdma
Frequency stability13ppm
Harmonics/spuriousExceeds fcc and etsi over temperature
Rf sensitivity<-90dbm w 10-3 ber
