DFIN-IPXW | Diversity Fin IPX Antenna, White

DFIN-IPXW

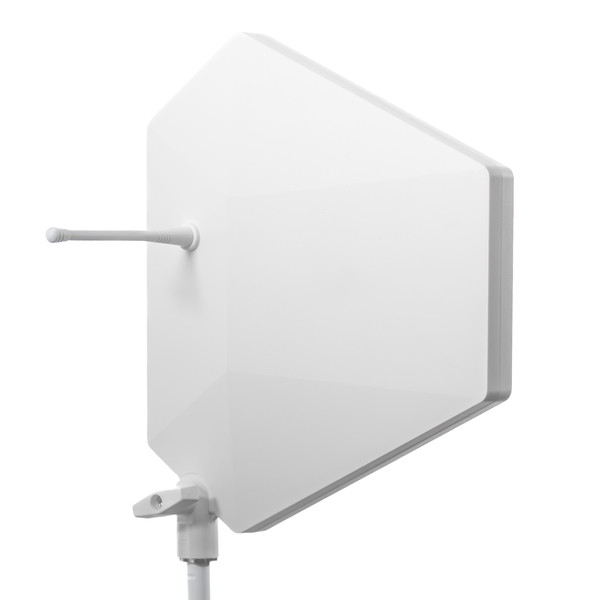

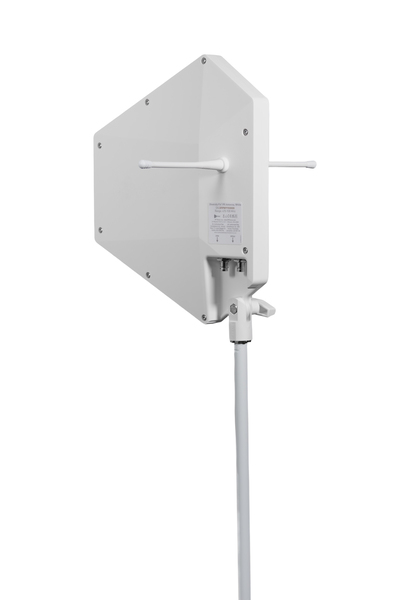

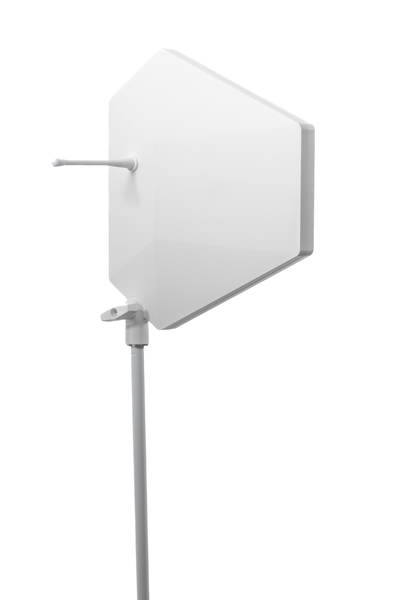

Diversity Fin IPX Antenna, White

Diversity Fin IPX Antenna, White: Rugged, Weather-Resistant, Reliable
The Diversity Fin IPX Antenna, White, is the next evolution of RF Venue’s industry-standard flagship. Engineered to provide the same legendary performance as the original Diversity Fin, the IPX version is built to withstand the unpredictability of the elements for permanent wallmount installation.

The Diversity Fin IPX White delivers a consistently reliable wireless microphone signal as part of a permanent outdoor installation. Its bulletproof design effectively eliminates multi-path interference and signal dropouts. This is achieved by combining a log-periodic dipole array (LPDA) and a dipole antenna within a single, IP-rated ruggedized housing, allowing the IPX to capture both vertical and horizontal signals.

KEY FEATURES

• All-Weather Reliability: Like the CP Stage Antenna, IPX is Rated IP44, featuring a weather-resistant seal and downward-facing BNC connectors to protect against rain and dust.

• Patented Cross-Polarized Design: Replaces two traditional "shark fin" paddle antennas with a single, high-performance unit that reduces cost, setup time, and user error.

• Superior Signal Integrity: Specifically designed to combat multi-path interference, providing a more stable RF environment for wireless microphones.

• Versatile Mounting: Includes a standard 5/8”-27 threaded microphone stand connector (with EU adapter).

• High Compatibility: Operates across the 470-928 MHz range, making it compatible with nearly all modern wireless microphone systems.

WHY CHOOSE THE DIVERSITY FIN IPX ANTENNA?

For years, the Diversity Fin has been the go-to solution for eliminating dropouts. The IPX version takes that performance outdoors and to tough stage environments. By utilizing a cross-linear polarization design, the IPX captures signals regardless of how the performer holds the transmitter or what multi-path environment you find yourself in.

One Antenna System for Diversity Wireless: Because the Diversity Fin IPX houses two antenna elements in one, you only need a single mount and a single location to achieve diversity reception. This not only cleans up your stage plot but also provides a more cost-effective solution than purchasing two separate high-quality paddles.

TECHNICAL SPECIFICATIONS

• Operating Frequency: 470–928 MHz
• Weather Rating: IP44 (Weather-resistant)
• Connector Type: Downward-facing BNC-F (50 ohm)
• Polarization: Cross-Linear (Vertical & Horizontal)
• Impedance: 50 ohm
• Type: Passive (No active electronics)
• Mounting: 5/8”-27 threaded mount (EU adapter included)
• Available Finishes: Matte Black or Matte White

IN THE BOX

• (1) Diversity Fin IPX Antenna, White
• (2) Dipole Antennas
• (2) Spare Dipole Antennas
• (1) Threaded EU Microphone Stand Adapter

PRO TIP: While the Diversity Fin IPX White is perfect for outdoor installation, for sleek, aesthetic-focused indoor installations, we recommend the RF Venue Diversity Architectural Antenna.
