FSII-TCVR-24 | FREESPEAK II 2.4 GHZ ACTIVE ANTENNA:  ACTIVE ANTENNA POWERED EITHER LOCALLY OR FROM THE MATRIX

FSII-TCVR-24
FREESPEAK II 2.4 GHZ ACTIVE ANTENNA:  ACTIVE ANTENNA POWERED EITHER LOCALLY OR FROM THE MATRIX

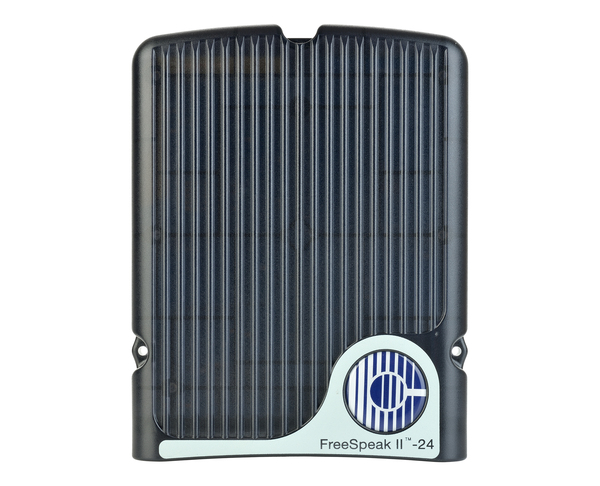

The FSII-TCVR-24 is an active transceiver antenna for the FSII-BP24 beltpacks. The antenna can be locally powered or powered via the FSII base station or matrix on shorter connections (less than 1000 ft). The FSII-TCVR-24 has a mount for wall or microphone stand. A blue status light is visible from either mounting orientations. When mixed with FSII-TCVR-19 antennas, a single radio space can support up to 65-90 FreeSpeak II 1.9 GHz or 2.4 GHz beltpacks.

Details

• Functions with FSII base, FreeSpeak Edge base, Arcadia Central Station, E-IPA-HX card, and FSII splitter hardware
• Uses existing FSII base, E-QUE-HX cards, and FSII splitter hardware
• Supports 4 FSII-BP24 beltpacks per FSII-TCVR-24 transceiver
• Supports systems with up to 65-90 beltpacks when mixed with FSII-19-TCVRs
• Blue LED status indicator on top and bottom
• Mic stand or wall mount orientation (metric and imperial threads)
• IP53 rating for wet and dusty conditions
