IPD4-CM62-BGM-II-WH | 6" IP-ADDRESSABLE, 4-CHANNEL IN-CEILING SPEAKER WITH SEAMLESS MAGNETIC GRILLE
IPD4-CM62-BGM-II-WH
6" IP-ADDRESSABLE, 4-CHANNEL IN-CEILING SPEAKER WITH SEAMLESS MAGNETIC GRILLE
IPD4-CM62-BGM-II-WH
6" IP-ADDRESSABLE, 4-CHANNEL IN-CEILING SPEAKER WITH SEAMLESS MAGNETIC GRILLE
- UM : EA
- Estimated Weight: 12.0

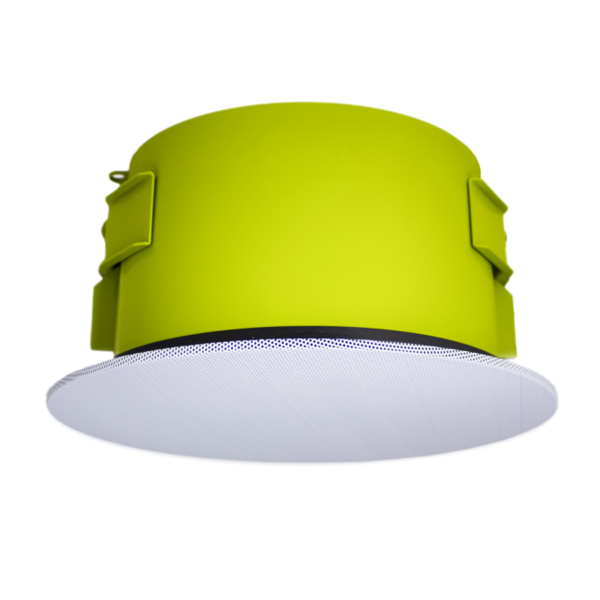

SoundTube 6" IP-Addressable, 4-Channel In-Ceiling Speaker with Seamless Magnetic Grille
Dante®-enabled coaxial in-ceiling speaker has output terminals for connection and power of up to three additional standard CM62-BGM speakers. The speaker incorporates one 6.5 inch (165 mm) polypropylene woofer with rubber surround and one 1.0 inch (25.4 mm) silk dome tweeter. BroadBeam Ring™ technology and a tuned port on the baffle provide smooth off-axis performance, mid-range clarity and bass response to 60 Hz (-10 dB). Low latency digital audio, power, and control are delivered to the speaker via standard category cable; connection is made on the other end to the STNet-Switch or other PoE / PoE+ switch. May also be powered via a 24V DC barrel connector for non-PoE installations. Configuration and zoning of the speaker are accomplished via software. When combined with standard speakers, the four-speaker cluster can be split and configured to handle two separate channels of audio. Mounting hardware is included and features SoundTube®'s SpeedWing™ constant-tension fixed-wing mounting system, which accommodates material thicknesses ranging from 0.035 in (0.9 mm) to 2.38 in (60.4mm). UL 60065 and 2043 listed. Color-coded (green) tile bridge, UL listed conduit clamp and paint shield are included.
Note: SoundTube IPD speakers are NOT compatible with PoE++. 30W PoE maximum (or 40W maximum with STNet Switch II)
|
Color |
White |
|
UPC |
644216227006 |
|
Manufacturer |
SoundTube |
|
Manufacturer's Category |
STNet IP-Addressable and Dante Series |
|
Shipping Weight |
11.25 lbs / 5.10 kg |
|
Carton Height |
8 in / 203.2 mm |
|
Carton Length |
13.25 in / 336.55 mm |
|
Carton Width |
13.25 in / 336.55 mm |
|
Certifications |
CE, UL2043, UL60065, ETL-C/US |
|
Enclosure Properties |
ABS, Steel |
|
Included Accessories |
Conduit Clamp, Grille, Tile Bridge |
|
Optional Accessories |
Tile Bridge (AC-CMEZ6/8-TB) Black Grille (GRL-CM-BGM-II-BK) |
|
Source Inputs |
6 Pin 5.08mm Euroblock, RJ45 Ethernet Port |
|
IP Rating |
IPX3 |
|
TAA Compliant (Trade America) |
No |
|
BAA Compliant (Made in USA) |
No |
|
Backcan Diameter |
9.67 in / 245.6 mm |
|
Backcan Height |
5.75 in / 146.1 mm |
|
Crossover Frequency |
4.0 kHz |
|
Cutout Width/Diameter |
10.5 in / 266.7 mm |
|
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) |
5.9 and 8.0 |
|
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) |
4.9 dB and 6.3 dB |
|
Frequency Response (± 10 dB) |
55 Hz - 20 kHz |
|
Frequency Response (± 3 dB) |
60 Hz - 20 kHz |
|
Grille Properties |
Standard-Flange, Friction-Fit, White, Paintable, Painted, Steel |
|
Low Pass Crossover |
12 dB per octave 2nd order |
|
Max. Ceiling Thickness |
1.6 in / 40.6 mm |
|
Max SPL @ 1M |
95 dB |
|
Minimum Ceiling Thickness |
0.035 in / 0.89 mm |
|
Network Type: High Pass |
12 dB per octave 2nd order |
|
Tweeter Driver |
1" Silk Dome w/ BroadBeam Ring® |
|
Woofer Driver |
6.5" Polypropylene Cone w/ Butyl Rubber Surround |
|
Visible Diameter |
11.75 in / 298.5 mm |
|
Visible Height |
0.34 in / 8.6 mm |
