JR2W | WHITE UNIVERSAL MOUNT FOR PROJECTORS UP TO 70LBS WITH PITCH & YAW ADJUSTMENTS / QUCIK RELEASE
JR2W
WHITE UNIVERSAL MOUNT FOR PROJECTORS UP TO 70LBS WITH PITCH & YAW ADJUSTMENTS / QUCIK RELEASE
Click image to enlarge

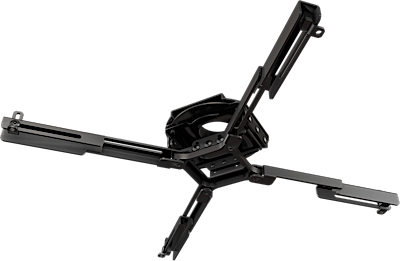

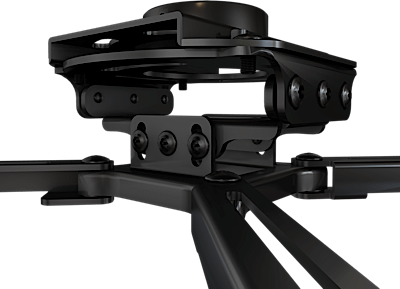

JR2W
WHITE UNIVERSAL MOUNT FOR PROJECTORS UP TO 70LBS WITH PITCH & YAW ADJUSTMENTS / QUCIK RELEASE
- UM : EA
- Estimated Weight: 4.0
Two-piece design for easy installation via click-in-place quick release. A total of 12 adjustment points; 6 for pitch and 6 for roll to ensure that projector stays in place and does not slip after installation.
Features:
- Low-profile, holds projector close to ceiling for a subtle appearance
- Completely pre-assembled mounting interface for quick installation
- Fully adjustable roll, pitch and yaw
- 12 total adjustment points; 6 for pitch and 6 for roll
- Quick release mechanism allows for easy service of projector (video projector ceiling mounts)
- Mounts to any 1.5″ NPT threaded pipe
- Pre-sorted hardware pack for easy installation
| Weight capacity | 70lb (31.8kg) |
|---|---|
| Max mounting pattern | 18.1"(460mm) diameter |
| Height | 3.46" (88mm) from ceiling to projector surface |
| Pitch (up/down) | +/- 20° |
| Roll (side to side) | +/- 8° |
| Rotation (yaw) | 360° |
| 1.5" NPT thread compatible | Yes |
| Mounting interface | 1.5" NPT thread compatible |
| Construction | aluminum/high-grade cold rolled steel |
| Product finish | scratch resistant epoxy powder coat |
| Product weight | 2.2lb (1kg) |
| Package specifications | 13"x7"x4" |
| Color | black |
| Warranty | 10-years |
×
×
