JR3W | UNIVERSAL PROJECTOR MOUNT WITH PRECISE MICRO-ADJUSTMENT FOR ROLL, PITCH & YAW / 70LB CAPACITY/ WHITE
JR3W
UNIVERSAL PROJECTOR MOUNT WITH PRECISE MICRO-ADJUSTMENT FOR ROLL, PITCH & YAW / 70LB CAPACITY/ WHITE
JR3W
UNIVERSAL PROJECTOR MOUNT WITH PRECISE MICRO-ADJUSTMENT FOR ROLL, PITCH & YAW / 70LB CAPACITY/ WHITE
- UM : EA
- Estimated Weight: 5.0

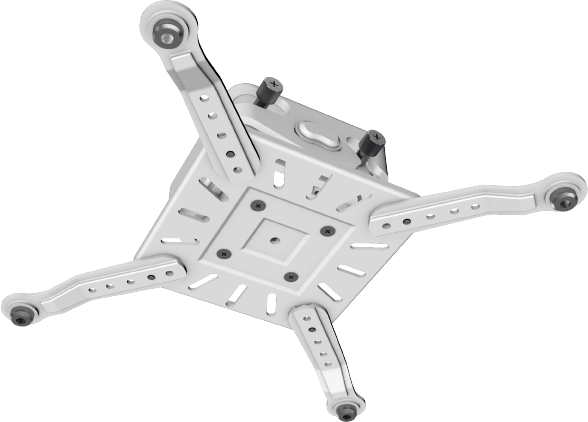

SyncPro™ Universal mount for projectors with micro adjustment
SyncPro This top-end projector mount is simply the easiest to install and precisely adjust without the use of tools. Rotate the large, easy to grip knobs to make all necessary adjustments during installation. Crimson lead screw adjustment mechanism is unique and precise. Heavy-duty design makes it ideal for larger projectors and/or those with an off-center lens.
- Security hardware included for all connection points
- Completely pre-assembled mounting interface for quick installation
- Fully adjustable roll, pitch and yaw
- Quick release mechanism allows for easy service of projector
- Mounts to any 1.5" NPT threaded pipe
- ADJR3 adapter extenders available to increase max mounting pattern for larger projectors
- Pre-sorted hardware pack for easy installation
Weight capacity 70lb (31.8kg)
Max mounting pattern 13.8" (351.5mm) diameter
Micro Adjust Yes
Height 3.46" (88mm) from ceiling to projector surface
Pitch (up/down) +/- 15°
Roll (side to side) +/- 8°
Rotation (yaw) 360°
1.5" NPT thread compatible Yes
Mounting interface 1.5" NPT thread compatible
Construction aluminum/high-grade cold rolled steel
Product finish scratch resistant epoxy powder coat
Product weight 2.2lb (1kg)
Package specifications 14"x7"x3"
Color white (also comes in black)
Model numbers JR3 (black), JR3W (white)
Warranty limited lifetime
