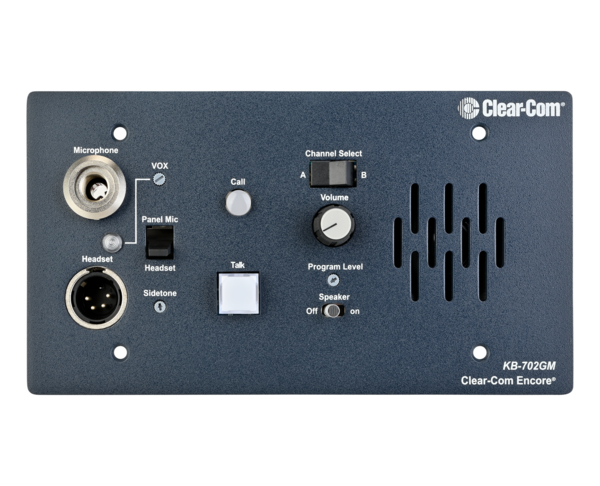

KB-702GM | 2CH REMOTE SPEAKER STATION WITH GOOSENECK MIC CONNECTOR / *WALL OR CONSOLE MOUNTABLE WITH ACCESSORY*

  • MAP: $775.00 / EA
  • List Price: $775.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
2CH REMOTE SPEAKER STATION WITH GOOSENECK MIC CONNECTOR / *WALL OR CONSOLE MOUNTABLE WITH ACCESSORY*
Click image to enlarge

KB-702GM
2CH REMOTE SPEAKER STATION WITH GOOSENECK MIC CONNECTOR / *WALL OR CONSOLE MOUNTABLE WITH ACCESSORY*

  • UM : EA

The KB-702GM remote speaker station provides selection between two partyline communication channels, enabling the user to transmit and receive on the chosen channel. It includes a gooseneck microphone connector and incorporates VOX circuitry.

For power consumption estimates related to analog partyline systems, refer to the Encore Power Supply Calculator.

Features:

  • Gooseneck microphone connector with VOX circuitry
  • Talk/Listen from headset mic, telephone handset, or push-to-talk microphone
  • Four programmable modes via dip switches
  • Balanced local program input with level control
  • Visual and audible call signaling
  • Optional 4-wire daughter board
  • Wall or console mountable
  • Optional V-Box for portable or desktop use
  • Built-in speaker
Input Type: Electret
Input Impedance: >=2K
Mic Limiter Threshold: -2dBu ±3dB
Mic Limiter Range: >= 15dB
Input Type: Dynamic
Input Impedance: >= 1K
Maximum Level before Clipping: >= 20dBu
Output Limiter Threshold: +5dBu ± 3dB
Maximum Output Level before Distortion: >= 17dBu
Off Noise: < -74dBu
