KD-PS42 | 4X2 PRESENTATION SWITCHER - 4 INPUTS 4K/18G WITH 2 MIRRORED HDMI/HDBT OUTPUTS
KD-PS42
4X2 PRESENTATION SWITCHER - 4 INPUTS 4K/18G WITH 2 MIRRORED HDMI/HDBT OUTPUTS
KD-PS42
4X2 PRESENTATION SWITCHER - 4 INPUTS 4K/18G WITH 2 MIRRORED HDMI/HDBT OUTPUTS
- UM : EA
- Estimated Weight: 11.0
The Key Digital KD-PS42 is a 4x2 presentation switcher designed for professional AV installations requiring flexible input/output control and seamless signal integration. With four input ports (2 HDMI, 1 DisplayPort, and 1 VGA with analog audio) and dual mirrored outputs (1 HDMI and 1 HDBaseT), this unit offers automatic and manual switching, audio de-embedding, CEC control, and video resolution support up to 4K/UHD at 18Gbps. Its HDBaseT output extends video, audio, control, and power over a single Cat5e/6 cable up to 100 meters, making it perfect for conference rooms, classrooms, houses of worship, and digital signage systems. Built-in control options include IR, RS-232, TCP/IP, and front panel buttons, while compatibility with Key Digital's free iOS app and KD-CAM USB camera makes it a complete solution for BYOD environments and video conferencing applications.
Features

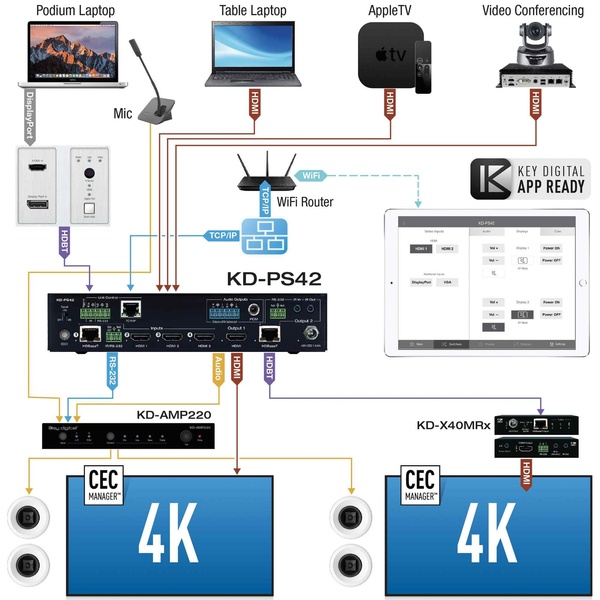

- Presentation Switcher Kit: Includes KD-PS42 and KD-X40MRx. Add KD-X2x1WDTx or KD-2x1WVTX wall plate HDBaseT transmitter for plug-in on walls, floor and table boxes
- Presentation Switching: 3 HDMI, 1 HDBaseT source selection by push button, IP, RS-232, IR, auto switching, or trigger control
- Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
- Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source when enabled
- CEC Manager™: Power, volume, and muting controls of the connected display/ projector without any additional control wiring. Selection of desired CEC command recipient
- Audio De-embedding: Audio of the selected source is de-embedded at the unit’s analog L/R balanced/unbalanced and PCM digital audio connectors
- KD-AMP220 Control Mode: Command forward to KD-Amp220 for an all-in-one user-friendly control UI of video switching, audio and speech enforcement
- HDCP Licensing: Fully licensed and compatible with HDCP 2.2

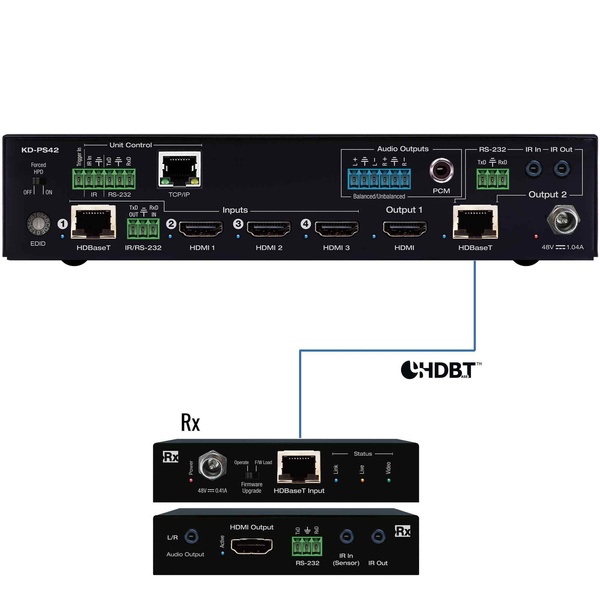

- Power Over HDBaseT: Rx unit (included) and wall plate Tx unit (sold separately) powered by KD-PS42
- Installation: Half-rack width with rack mounting ears included
- Signal Extension on HDBaseT Input and Output: 4K/UHD (18G) up to 40m / 131ft, 1080p up to 70m / 230ft
- Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
- Unit Control Mode: Provides TCP/IP and RS-232 control and status of/from Tx unit
- EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the output/display 1
- Surround Sound Audio Support: DTS-HD Master Audio™, DTS:X®, Dolby TrueHD®, Dolby Atmos®

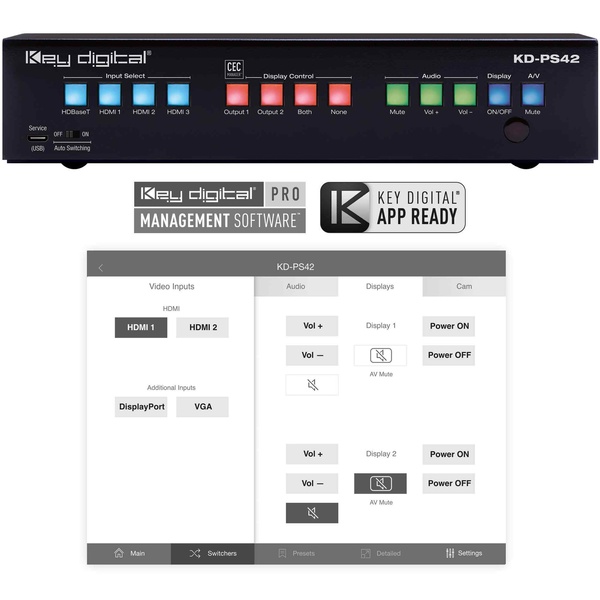

- KD-App Ready: Network scan & detect populates pre-built GUI including connected display/projector controls via CEC Manager™
Additional Features
- HDR10: More life-like images through a greater range of luminance levels
- Resolution Support: Supports SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p
- Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake
- EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the output/display 1
- TMDS re-clocking: Support for long HDMI connectivity using Key Digital® HDMI cables
- Control System Support: Key Digital® App ready. Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.
