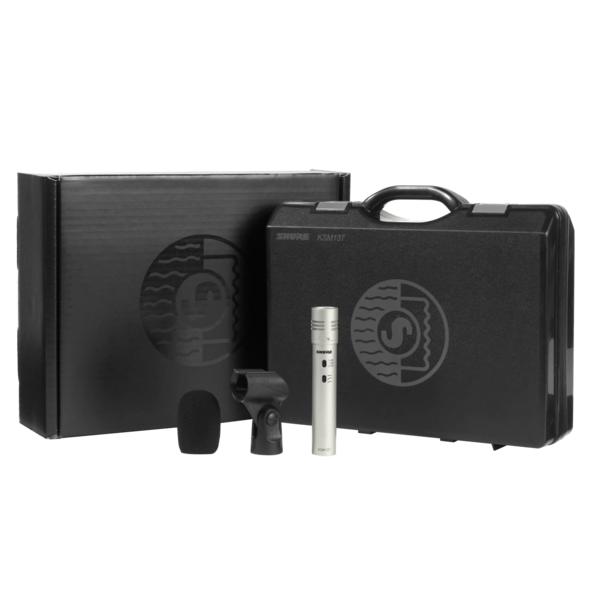

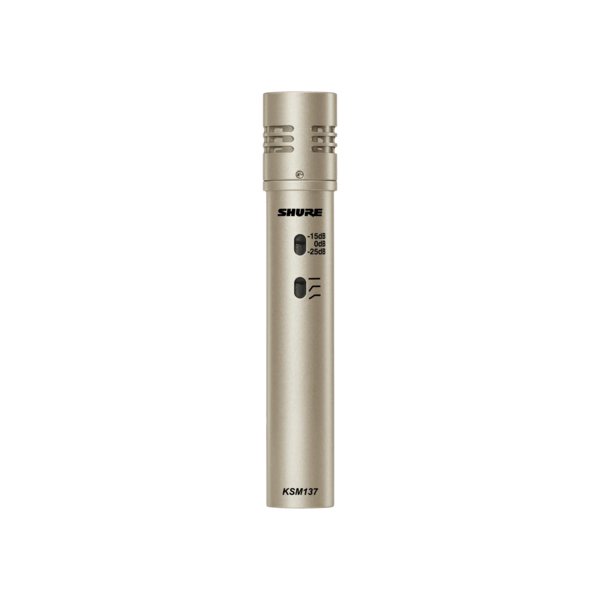

KSM137/SL | CARDIOID STUDIO CONDENSER MICROPHONE (CHAMPAGNE), FOAM WINDSCREEN AND CARRYING CASE
KSM137/SL
CARDIOID STUDIO CONDENSER MICROPHONE (CHAMPAGNE), FOAM WINDSCREEN AND CARRYING CASE
Click image to enlarge
KSM137/SL
CARDIOID STUDIO CONDENSER MICROPHONE (CHAMPAGNE), FOAM WINDSCREEN AND CARRYING CASE
- UM : EA
- Estimated Weight: 0.2
Cardioid instrument microphone delivers excellent sound isolation and superior transient response. It features a gold-layered Mylar diaphragm, preamplifier for transparency, subsonic filter to stop low frequency rumble, and a pad for handling SPLs.
Features:
- Highly consistent cardioid polar pattern
- Ultra-thin, 2.5 micron, 24 karat gold-layered, low mass Mylar diaphragm for superior transient response
- Class A, discrete, transformerless preamplifier for transparency, extremely fast transient response, no crossover distortion, and minimal harmonic and intermodulation distortion
- Premium electronic components, including gold-plated internal and external connectors
- Subsonic filter eliminates low frequency rumble (less than 17 Hz) caused by mechanical vibration
- Switchable 15 dB pad for handling extremely high sound pressure levels (SPLs)
- 3-position switchable pad (0 dB, 15 dB, and 25 dB) for handling extremely high sound pressure levels (SPLs)
- 3-position switchable low-frequency filter reduces background noise and counteracts proximity effect
| Transducer type | Condenser |
|---|---|
| Polar pattern | Cardioid |
| Frequency range from (hz) | 20 |
| Frequency range to (khz) | 20 |
| Sensitivity dbv/pa | -37.00 |
| Sensitivity mvpa | 14.10 |
| Equivalent selfnoise | 14 dB(A) |
| Maximum sound pressure | 145 dB |
| Impedance (ω) | 150 |
| Switchable low cut | yes |
| Output connectors | 3 Pin XLR |
| Attenuation pad | yes |
| Requires phantom power (vdc) | 11-52 |
×
×
