KSM141/SL | DUAL-PATTERN (CARDIOID/OMNIDIRECTIONAL) STUDIO CONDENSER MICROPHONE (CHAMPAGNE),
KSM141/SL
DUAL-PATTERN (CARDIOID/OMNIDIRECTIONAL) STUDIO CONDENSER MICROPHONE (CHAMPAGNE),
KSM141/SL
DUAL-PATTERN (CARDIOID/OMNIDIRECTIONAL) STUDIO CONDENSER MICROPHONE (CHAMPAGNE),
- UM : EA
- Estimated Weight: 3.0
Both the acoustic environment and microphone placement strongly affect the sound obtained from miking a source. You may need to experiment with microphone placement and room treatments to achieve the best overall sound for each application.

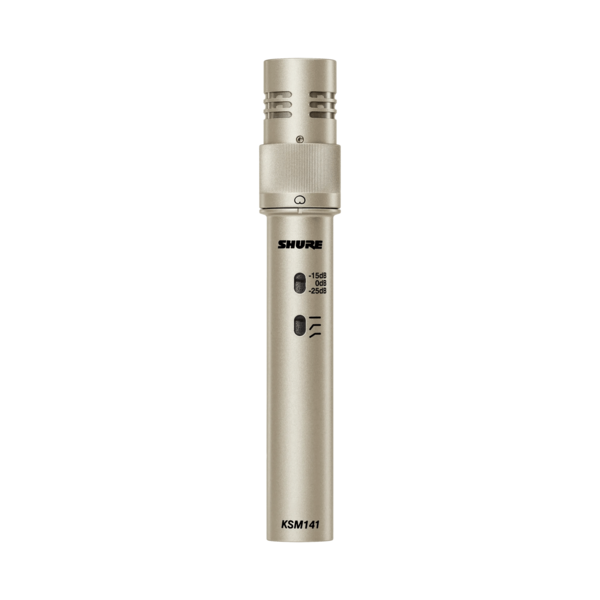

The KSM141 is a dual-pattern end-addressed condenser microphone with a rotating collar, allowing easy switching between a consistent cardioid or true omnidirectional polar pattern for smooth and extremely focused sound reproduction.
Designed for studio use, yet rugged enough for live applications, the KSM141 can withstand extremely high sound pressure levels (SPL). Its low self-noise and extended frequency response make it ideal for recording musical instruments.
Features:
- A mechanical polar pattern switch for highly consistent cardioid and true omnidirectional polar patterns. Provides flexibility in a wide variety of recording applications
- Ultra-thin, 2.5 micron, 24 karat gold-layered, low mass Mylar diaphragm for superior transient response
- Class A, discrete, transformerless preamplifier for transparency, extremely fast transient response, no crossover distortion, and minimal harmonic and intermodulation distortion
- Premium electronic components, including gold-plated internal and external connectors
- Subsonic filter eliminates low frequency rumble (less than 17 Hz) caused by mechanical vibration
- Three-position switchable pad (0 dB, 15 dB, and 25 dB) for handling extremely high sound pressure levels (SPLs)
- Three-position switchable low-frequency filter to reduce background noise and counteract proximity effect
| Transducer type | Condenser |
|---|---|
| Polar pattern | Cardioid, Omnidirectional |
| Frequency range from (hz) | 20 |
| Frequency range to (khz) | 20 |
| Sensitivity dbv/pa | -37.00 |
| Sensitivity mvpa | 14.10 |
| Equivalent selfnoise | 14 dB(A) |
| Maximum sound pressure | 5000 Ω load: 170 dB 2500 Ω load: 164 dB 1000 Ω load: 159 dB 5000 Ω load (Pad ON): 145 dB 2500 Ω load (Pad ON): 139 dB 1000 Ω load (Pad ON): 134 dB |
| Impedance (ω) | 150 |
| Switchable low cut | yes |
| Output connectors | 3 Pin XLR |
| Attenuation pad | yes |
| Interchangeable capsule | no |
| Requires phantom power (vdc) | 11–52 |
