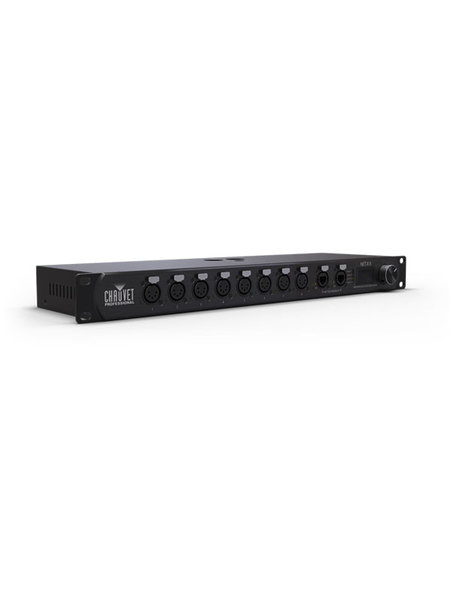

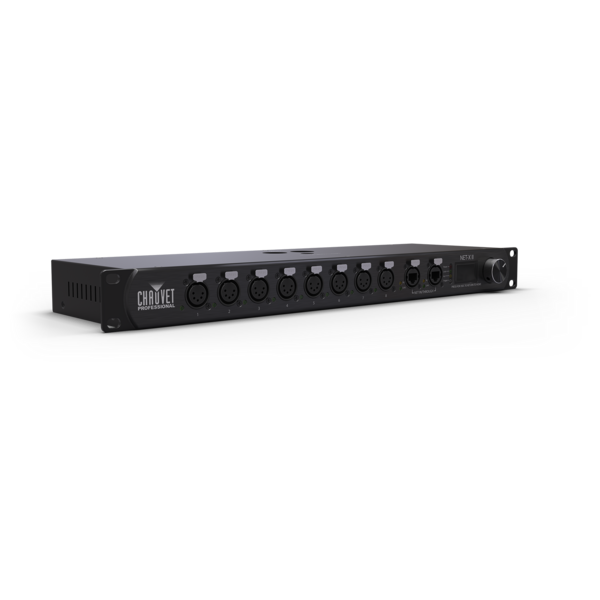

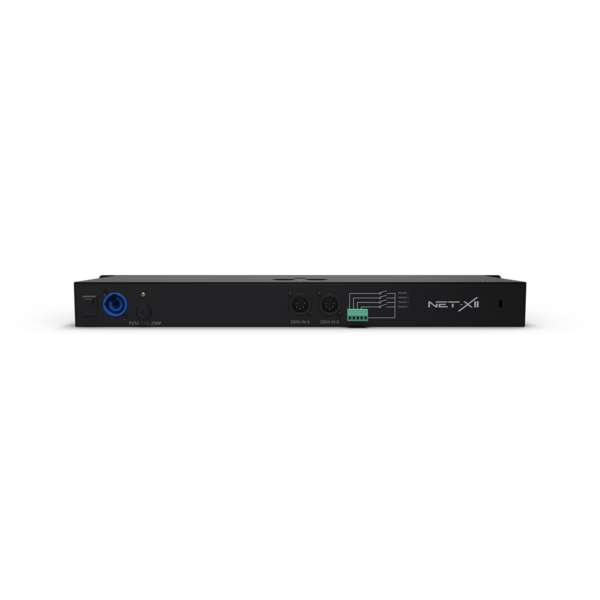

NETXII | DMX TO ETHERNET MERGER AND NODE INCLUDES: POWERCON POWER CABLE, DATA CONNECTIONS

Net-XII is a versatile rack-mountable Ethernet-to-DMX node, which also functions as a merger for two controllers on either Ethernet or DMX inputs. It has the ability to record up to 10 DMX presets, which can be triggered remotely. Net-X II has two 5-pin DMX inputs and eight 5-pin DMX outputs – all optically isolated, and can output up to eight universes simultaneously. The eight 5-pin DMX outputs can be individually assigned to either of the two DMX inputs (or the Ethernet inputs to mix network inputs with DMX inputs in a single device). LTP and HTP merging fully supports network protocols sACN, Art-Net or DMX to merge two incoming controllers to any DMX output. It has RDM over network functionality. Net-X II provides a reliable platform for novice users with its preset configuration library, while providing experts with a highly customizable network infrastructure for complex control systems.

Features:

• Features two 5-pin DMX inputs and eight optically isolated 5-pin DMX outputs.
• Converts up to eight DMX universes into Art-Net or sACN network protocols.
• Merges two controllers using HTP or LTP protocols for flexible signal management.
• Records up to 10 DMX presets for standalone playback or remote contact triggering.
• Supports RDM over Art-Net for simplified remote fixture configuration and management.
• Includes an integrated webserver for remote setup, system backup, and firmware updates.
