OS15CX-B | 60° X 40° COAXIAL OUTDOOR SPEAKER W/ U-BRACKET, 1 X 15" COAXIAL DRIVER, BLACK
OS15CX-B
60° X 40° COAXIAL OUTDOOR SPEAKER W/ U-BRACKET, 1 X 15" COAXIAL DRIVER, BLACK
OS15CX-B
60° X 40° COAXIAL OUTDOOR SPEAKER W/ U-BRACKET, 1 X 15" COAXIAL DRIVER, BLACK
- UM : EA
- Estimated Weight: 90.0

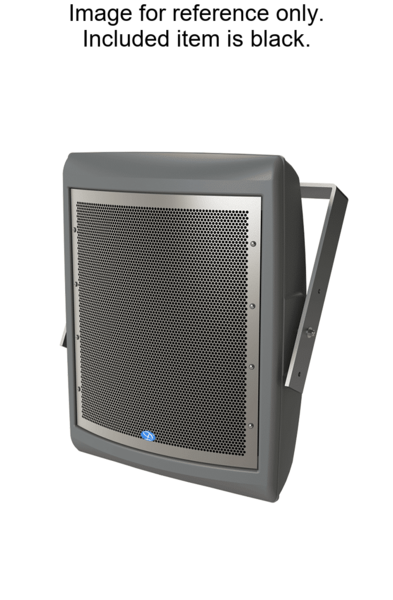

The OS15CX-B is an outdoor loudspeaker featuring a 15-inch/1.3-inch coaxial driver housed in a weather-resistant enclosure. It is designed for short-throw applications and incorporates a full-range Synergy Horn for sound projection. The speaker uses a Synergy crossover network to achieve phase alignment between frequency bands, allowing the separated bands to combine effectively and reduce off-axis frequency response distortions.
The unit includes a Sentinel protection circuit for the high-frequency driver and comes with a heavy-duty aluminum mounting bracket and angle strap. The OS15CX-B is compatible with Danley amplifiers and processors featuring digital signal processing (DSP) capabilities.
| Coverage Pattern | 60° x 40° |
|---|---|
| Operating Frequency Range | 64 Hz – 18 kHz |
| Continuous Output | 124 dB SPL |
| Peak Output | 130 dB SPL |
| Maximum Linear SPL | 137.1 dB SPL |
| Sensitivity | 97 dB (2.83 V at 1 m) |
| Driver Complement | 1 x 15" coaxial |
| Rated Impedance | 8ohm |
| Power Rating | 500 W continuous |
| Item Name | OS15CX-B |
