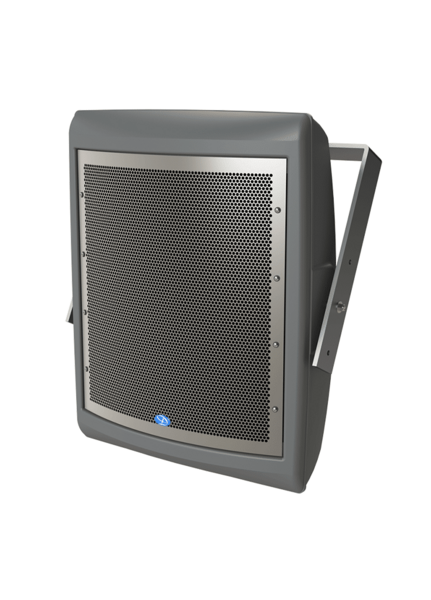

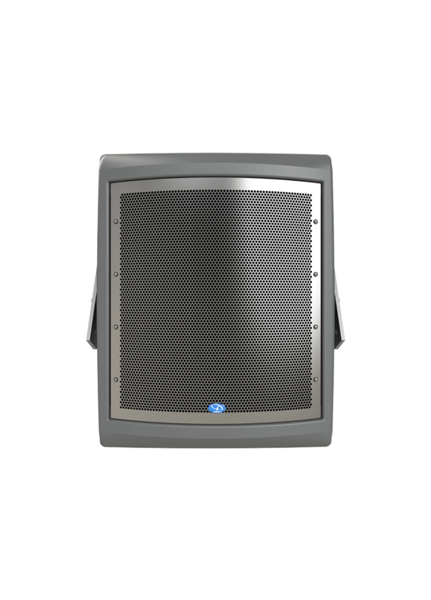

OS62-G | OS62 GREY - 60 X 20 DEGREE HIGH OUTPUT SYNERGY HORN OUTDOOR SPEAKER

The OS62-G is a three-way loudspeaker system featuring a compact Synergy Horn with a 60° horizontal by 20° vertical coverage pattern. It incorporates a Neodymium ring-radiator coaxial compression driver for mid and high frequencies with 1.4-inch exit/4.0-inch voice coil and 1.0-inch exit/2.5-inch voice coil configurations. The low-frequency section includes four 8-inch Neodymium transducers sharing the same horn. The design enables output through a single amplifier channel using integrated proprietary crossovers for phase alignment, minimizing off-axis frequency response distortions.

The enclosure is constructed from thermo-molded poly-composite and rated IP55 for environmental protection, featuring a two-stage stainless steel baffle with a hydrophobic screen. The system includes a heavy-duty aluminum mounting bracket and angle strap for secure installation in indoor and outdoor settings. It also incorporates multi-stage high-frequency driver protection circuitry for overload prevention without affecting normal dynamic range. The OS62-G is compatible with specific amplifier and processor models supporting DSP functionality.
