P3TRA215CL-H20 | PSM300 WIRELESS IEM SYSTEM WITH SE215-CL EARPHONES / H20 (FREQUENCY RANGE: 518 – 542 MHZ)

  • MAP: $899.00 / EA
  • List Price: $1,069.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 2
  • Usually ships in 3-7 days

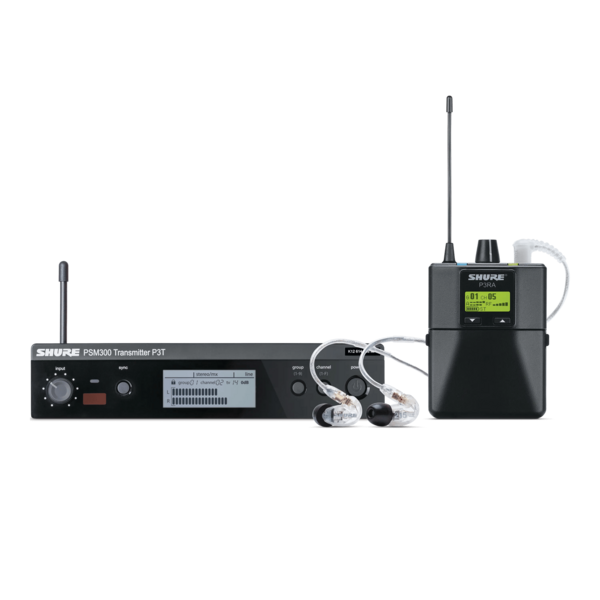

PSM300 WIRELESS IEM SYSTEM WITH SE215-CL EARPHONES / H20 (FREQUENCY RANGE: 518 – 542 MHZ)
Click image to enlarge

P3TRA215CL-H20
PSM300 WIRELESS IEM SYSTEM WITH SE215-CL EARPHONES / H20 (FREQUENCY RANGE: 518 – 542 MHZ)

  • UM : EA
  • Estimated Weight: 7.9

PSM 300 Stereo Personal Monitor Systems deliver reliable wireless freedom to every corner of the stage. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts.

Easy to setup and operate, PSM 300 systems offer one-touch frequency scan and sync to find and assign a clean wireless channel. Adjust the volume and use MixMode technology or stereo mode to create a personal mix from two channels of audio.

Features

  • Send two channels of audio wirelessly to performers onstage

  • 24-bit digital audio provides clear, detailed sound

  • Patented Audio Reference Companding sounds more like wired

  • Up to 90 dB signal-to-noise ratio

  • Exceptionally wide stereo separation

  • Solid analog RF connection over a 300 ft (90 m) range

  • Create a personal mix from the bodypack with MixMode technology or stereo mode

  • Frequency scan and IR sync quickly finds and assigns a clean channel

  • Half-rack, single channel transmitter with included rack mount kit

  • P3R bodypack systems available with SE112 Sound Isolating Earphones

  • P3RA professional bodypack systems available with SE215 Sound Isolating Earphones

RF Carrier Range

488–937.5 MHz (Varies by region, see frequency range and output power table)

Compatible Frequencies (Per band)

up to 15

Tuning Bandwidth

24 MHz maximum (Note: varies by region)

Operating Range (Environment dependent)

90 m (300 ft)

Audio Frequency Response

38 Hz–15 kHz

Signal-to-Noise Ratio (A-weighted)

90 dB (typical)

Total Harmonic Distortion (ref. ±34 kHz deviation @1 kHz)

<0.5% (typical)

Companding

Patented Shure Audio Reference Companding

Spurious Rejection (ref. 12 dB SINAD)

>80 dB (typical)

Frequency Stability

±2.5 ppm

MPX Pilot Tone

19 kHz (±1 Hz)

Modulation

FM*, MPX Stereo (ref. ±34 kHz deviation @ 1 kHz)

Operating Temperature

-18 °C (0 °F) to +63 °C (145 °F)
