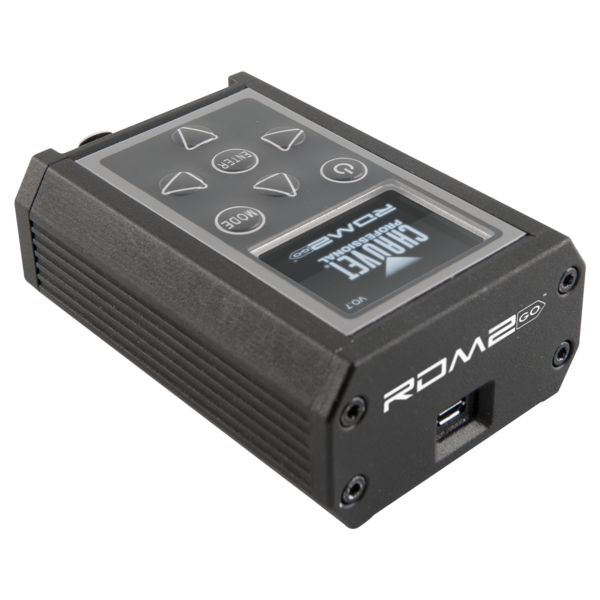

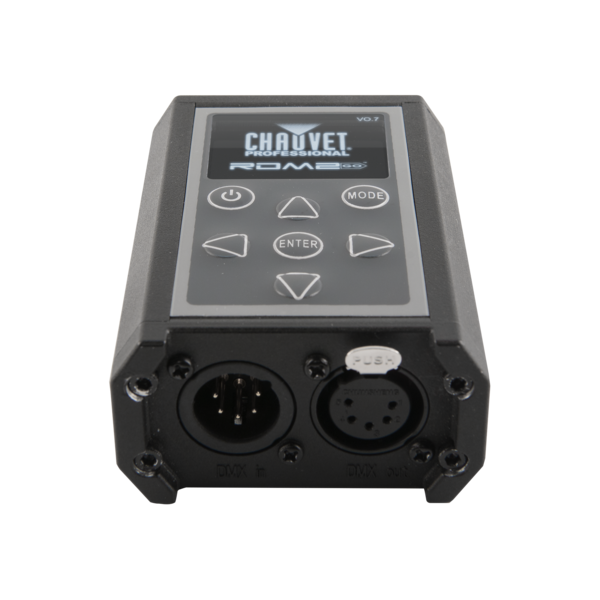

RDM2go is a multi-functional tool for working with fixtures over a DMX/RDM data line. This palm-sized controller performs a multitude of tasks including RDM functionality, DMX snapshot and test-scene record and playback, DMX input and output monitoring. RDM2go features a built-in DMX cable integrity checker, and an easy to read OLED display. It also addresses Chauvet’s Iluminarc IP fixtures that do not have a display. The unit easily recharges via a standard micro USB jack and comes with a convenient carry pouch and DMX connector converters.
Features:
- Supports DMX, RDM, and Ilumicode protocols for comprehensive fixture management.
- Offers full RDM functionality to easily address, locate, and monitor fixtures.
- Records DMX snapshots and tests cable integrity for complete system diagnostics.
- Directly addresses Iluminarc IP fixtures that lack an onboard display.
- Features a bright, easy-to-read OLED display for clear data monitoring.
- Includes a carry pouch, USB charging cable, and DMX connector adapters.
| Standalone Color Mixing | Yes |
|---|---|
| Color Temperature Presets (Ilumicode) | Yes |
| Dim Modes (Ilumicode) | 5 |
| Customizable Programs | Yes |
| Recall Custom Programs | Yes |
| Protocol(s) | DMX, RDM, Ilumicode |
| DMX Channels | 1, 2, 3, 4, 5, 6 or 7 |
| Modes/Personalities (Ilumicode) | 13 personalities (ARC 1, ARC 1+D, ARC2, ARC2+D, ARC3, ARC3+D, ARC FULL, REMOTE, SOLID, SPECIAL1, SPECIAL2, VW, VW+D) |
| Power Input | Micro USB-B Male |
| Data Connectors | 5-pin XLR |
| Cable Length (power) | 3 ft (0.91 m) |
| Certifications | CE |
| IP Rating | IP20, dry location |
